Judgement Conditions (Trend Monitor)

Sets the warning range for prompting caution before large numbers of NGs occur as well as OK/NG judgement conditions.

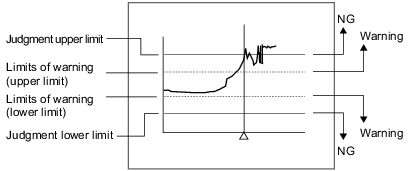

Illustration of judgement conditions
Note
  • When a warning occurs, the message "Limits of Warning" is displayed on the screen.
    Notification that an alarm has occurred can also be output to external devices if output-related processing units such as "Parallel Judgement Output" are used to set an arithmetic expression to output measurement results (warnings) from the trend monitor.
  1. In the "Item tab" area, tap [Judgement].
  2. Set up the judgement condition.
    Judgement Conditions - "Judgement" area
    Setting item
    Set value
    [Factory default]
    Description
    Upper limit
    -999999999.9999 to 999999999.9999
    Specify the range where the measurement result is judged to be OK.
    Lower limit value
    -999999999.9999 to 999999999.9999
    Referred max / min of indication range
    • [Checked]
    • Unchecked
    When checked, the judgement range that can be set with the upper and lower values becomes the same as the max. and min. values set in [Display range].
    Note
    • If the window is entered after measurement is performed a few times and [Default] is tapped on, optimal judgement conditions including maximum and minimum measurement values are automatically set.
      Display Range - "Change display range" area
  3. In the "Warning" area, specify values for "Upper" and "Lower".
    The setup method is the same as the setup method for the "Judgement" area.
    Judgement Conditions - "Warning" area
    Setting item
    Set value
    [Factory default]
    Description
    Upper limit
    -999999999.9999 to [999999999.9999]
    Specify the warning range for encouraging caution before frequent occurrence of NGs.
    Lower limit value
    [-999999999.9999] to 999999999.9999
    Referred max / min of indication range
    • [Checked]
    • Unchecked
    When checked, the judgement range that can be set with the upper and lower values becomes the same as the max. and min. values set in [Display range].
