Model Registration (Model Dictionary)

Register the characters and marks as the model.
Models can be registered with any of 36 indexes, from 0 to 35, and up to 5 models can be registered for each index.

Select the Character Type

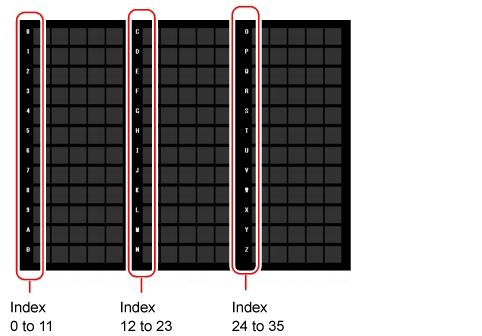

By factory default, 0 to 9 and A to Z are assigned to indexes 0 to 35.These assignments can be changed as necessary with the "%" and "#" codes.
Model Registration - Index
  1. In the "Item tab" area, tap [Model].
    When setting a new model, you do not have to tap [Model].
  2. Set the character type.
    Model Registration- "String setting" area

Registering a Model

This method is for registering models one character at a time.
Note
  1. In the "Item tab" area, tap [Model].
  2. When the measurement object is rotating, set the Angle range for the "Model parameter" area.
    Changing Model Parameters
  3. Select the index to register the model in, then tap [Model].
    Model - "Setting model" area
  4. Use the drawing tools to specify the model registration range.
    Model - "Detail" area
  5. Tap [OK].
    The model is registered and its central X and Y coordinate values are displayed in the "Setting model" area.
    Model - "Setting model" area

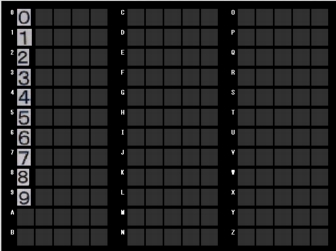

    The image specified for the model is displayed in the image display area.
    Model - "Image display" area
  6. To register two or more models, repeat the Steps3to5.

Changing Model Parameters

Model parameter values can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
After changing a setting, check whether measurement can be done properly by performing an actual measurement.
Important
  • After model parameters are modified, re-register all models.
  1. In the "Model parameter" area, specify a value for each item.
    Model - "Model parameter" area
    Setting item
    Set value
    [Factory default]
    Description
    With rotation
    • Checked
    • [Unchecked]
    When the measurement object rotates, place a check at "With rotation" and set the Angle range during a search.The normal direction is clockwise.

    Angle range
    -45 to 45
    [0]
    Smart mode
    • [Checked]
    • Unchecked
    Checking the "Smart mode" option enables a high-speed rotation search.The stability may be lowered when the model shape aspect ratio is large or when the NOT mask is used.
    Stab.
    1 to 15
    [13]
    Specify which is to have priority, detection stability or speed.
    If lowering stability does not speed up processing, it is likely that many candidates have been detected.In this case, specify a larger value for "Candidate LV" or "Stab."
    Prec.
    1 to 3
    [2]
    Specify which is to have priority, measurement positional precision or speed.
