Measurement Parameters (Model Dictionary)

This item can be changed if necessary.Normally, the factory default value will be used.
  1. In the "Item tab" area, tap [Measurement].
  2. In the "Measurement condition" area, specify a value for each item.

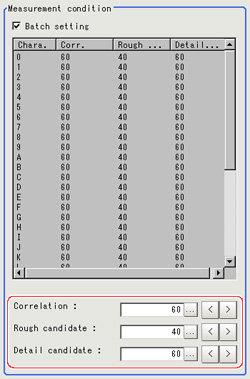

    Measurement - "Measurement condition" area
    Setting item
    Set value
    [Factory default]
    Description
    Batch setting
    • [Checked]
    • Unchecked
    Specify whether to set all Measurement values at the same time.
    • Checked: The same contents are set for all indexes.
    • Unchecked: The contents are only set for the selected index.
    Corr. descending
    0 to 100
    [60]
    Specify the lower limit of correlation values that are judged to be OK. This is the threshold for whether or not the candidate can be read in as a character.
    Rough candidate
    0 to 100
    [40]
    Specify the threshold value with which to detect candidate points in a rough search.Specify a smaller value when model search results are unstable.
    Detail candidate
    0 to 100
    [60]
    Specify the threshold value with which to detect candidate points in a detail search.Only the candidate points higher than this level are extracted as characters.
