Settings Flow (Edge Positions)

Set the edge position with the following steps.

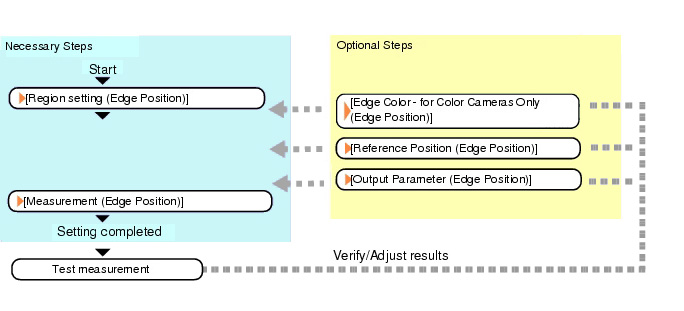

Edge position - Operation flowRegion settingOutput parameterReference positionEdge color - For color cameras onlyMeasurement parameter

List of Edge Position Items

Item name
Description
Region setting
This item is used to set up the measurement area.
Edge color specification
(for color cameras only)
If the color of the edges to be detected is decided, specify the color.
Reference position
The edge position is registered as the reference when the region is set.Change as necessary.
Reference Position (Edge Positions)
Measurement parameter
This item specifies the judgement condition for measurement results.
Measurement parameter can be changed as needed to address unstable measurement results.
The displayed items depend on whether your camera is a color or monochrome camera.Normally, the factory default value will be used.
Measurement Parameters (Edge Positions)
Output parameter
This item can be changed if necessary.Normally, the factory default value may be used.
Select the measurement result coordinates and set how to handle the coordinates.
Output Parameters (Edge Positions)
