Edge Positions

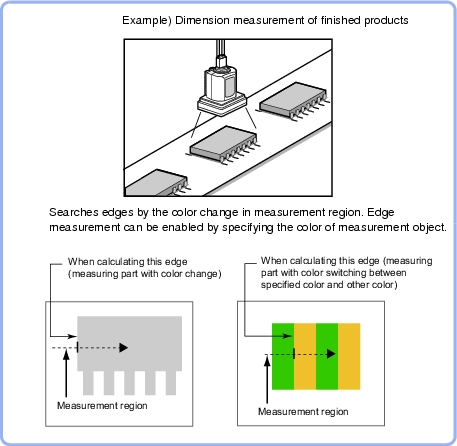

This processing item detects the position of the measurement object by using the change in color within the measurement region.

Used in the Following Case

  • To calculate edge coordinates of measurement objects
    Edge position - Overview
  • To find the width of a measurement object
    Using a Expression, the width of a measurement object can be calculated from the difference between two edge positions.
