Settings Flow (Camera Image Input HDR+)

To set camera image input HDR+, follow the steps below.

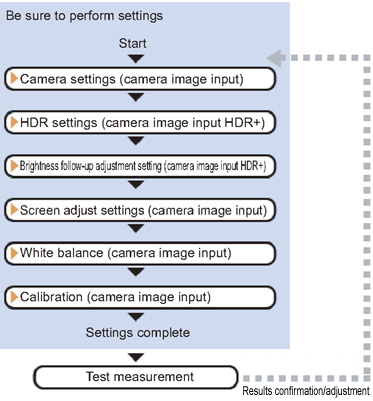

Camera image input HDR+ - Operation flow Camera setting HDR setting Brightness Follow-up Adjustment Setting Screen adjust White balance Calibration

Camera Image Input HDR+ Item List

Item name
Description
Camera setting
Specify the camera settings such as the electronic flash.
The setting method is the same as for [Camera Image Input].Please check it.
Camera Settings (Camera Image Input)
HDR setting
Carry out the image combination and photography settings.
HDR Settings (Camera Image Input HDR+)
Brightness Follow-up Adjustment Setting
Specify the brightness follow-up adjustment setting.
Brightness Follow-up Adjustment Setting (Camera Image Input HDR+)
Screen adjust
Adjust the lighting and the lens.
The setting method is the same as for [Camera Image Input].Please check it.However, the iris cannot be adjusted.
Screen Adjust Settings (Camera Image Input)
White balance
When using a color camera, adjust the white balance.
The setting method is the same as for [Camera Image Input].Please check it.
White Balance (Camera Image Input)
Calibration
Set when measurements (camera coordinate measurement values) are to be output using actual dimensions. Select the calibration setting method and generate the calibration parameters.
The setting method is the same as for [Camera Image Input].Please check it.
Calibration (Camera Image Input)
