Screen Adjust Settings (Camera Image Input)

Set the lighting and lens conditions for each camera.

Lighting Control

When a camera with a lighting function is connected, the brightness of the lighting can be adjusted from the controller. Brightness can be adjusted automatically or one of the preset patterns can be selected.
A lighting lamp image is displayed as a guide illustration.
Description of camera and lighting position
Note
  • When one scene contains two or more Camera Image Input units, lighting control can be performed only for the first Camera Image Input unit.
  1. In the item tab area, tap [Screen adjust].
    Screen adjustment settings
  2. In the "Lighting control" area, specify the brightness.
    The image display contents depend on the connected camera.
    When an intelligent camera is connected
    Important
    • When model FZ-SLC15 is connected, only parts 0 to 3 are active.Changing parts 4 to 7 will not affect the brightness.
    Screen adjust settings - "Lighting control" area
    Item
    Set value
    Description
    Pattern selection
    Pattern 0 to 16
    Select a preset lighting pattern.
    With rotation
    -
    After the camera is installed, if the orientation of the camera does not match the orientation of the lighting parts, tap [Turn] under the lighting diagram. The lighting diagram rotates 90 degrees clockwise each time you tap [Turn].
    Brightness at each part
    0 to 255 x 8ch
    [0]
    The brightness at each part can be adjusted to one of 256 levels.0 indicates the lighting is OFF. The larger the number, the higher the brightness.
    When an MG-WAVE is connected
    Screen adjust settings - "Lighting control" area
    Item
    Set value
    Description
    Pattern selection
    Pattern 0 to 2
    Select a preset lighting pattern.
    Brightness at each part
    0 to 255
    [0]
    The brightness can be adjusted to one of 256 levels.0 indicates the lighting is OFF. The larger the number, the higher the brightness.
    For other cameras
    The brightness cannot be adjusted.

Line Bright

The graph showing the gray distribution for 1 line in the image is called the "Line bright".You can display the line brights for R, G and B for any horizontal or vertical line.
  1. In the item tab area, tap [Screen adjust].
    Screen adjustment settings
  2. Place a check at "Display line bright".
    Screen adjust settings- "Line bright" Area
  3. Move the line to the position whose gray distribution you want to see.

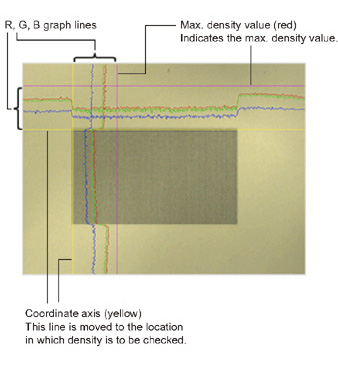

    Screen adjust settings - Line bright details

Lens Adjustment Setting

This function is only displayed when an intelligent camera or an auto-focus camera is connected.
Make lens adjustments such as the focus and zoom.The optimum value can be set automatically for the focus and iris.
  1. In the item tab area, tap [Screen adjust].
    Screen adjust
  2. Specify the "Zoom" size while checking the image.
  3. Tap [Auto] at "Focus" and "Iris".
    The focus and iris optimized for the zoomed image are set automatically.
    Screen adjust settings- "Lens setting" area
    Item
    Set value
    [Factory default]
    Description
    Zoom
    [0] to 1023
    Display the image zoomed in and out.Depending on the focus setting value, it may not be possible to set a large zoom value.
    Focus
    [0] to 1023
    Adjust the focus. When [Auto] is clicked, the optimum focus for the current image is set automatically.
    Iris
    [0] to 31
    Adjust the amount of light that passes through the lens. When [Auto] is clicked, the optimum iris for the current image is set automatically.
Important
  • Auto focus and auto iris can only be used when setting with this screen open.They cannot be used during running.

Common Setting for All Cameras

This function is only displayed when an intelligent camera or an auto-focus camera is connected.This sets the conditions for automatically setting the focus, iris, and white balance.
  1. In the item tab area, tap [Screen adjust].
    Screen adjust
  2. In the "Common setting for all cameras" area, set up "Camera adjust area" and "Iris base density".
    Screen adjust settings - "Common setting for all cameras" area
    Item
    Description
    Camera adjust area
    This sets the area for judging whether or not the state is appropriate when automatically setting the focus, iris, and white balance.
    Iris base density
    Increase the number when the auto iris effect is dark.
