Processing Item List > Loading Images > Camera Image Input HDR+ > Brightness Follow-up Adjustment Setting (Camera Image Input HDR+)Brightness Follow-up Adjustment Setting (Camera Image Input HDR+)
This sets how far to track the brightness of the loaded images.
- In the item tab area, tap [Brightness Follow-up Adjustment Setting].
- Set each item in the "Brightness follow-up adjustment setting" area.
ItemSet value
[Factory default]DescriptionExistence of brightness follow-up[Unchecked]
CheckedIf a check is placed at brightness follow-up, the image is output with its brightness automatically compensated.This makes it possible to obtain images with stable brightness even if the lighting conditions fluctuate, for example due to interfering light.Minimum Adj. range0.00 to 20.00
[6.00]Specify the follow-up brightness minimum value.Maximum Adj. range0.00 to 20.00
[16.00]Specify the follow-up brightness maximum value.Adjust bright ave.0.00 to 20.00

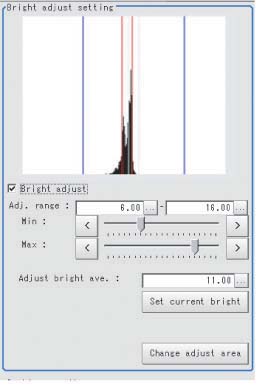

[11.00]Specify the target for brightness follow-up.Tapping the [Set current bright] button updates this value.When a check is placed at the brightness follow-up, the brightness Adj. range is displayed with blue lines in the "Histogram" area.Change the average brightness follow-up and brightness follow-up area.
