I/O Format (Parallel Interface)

When the Main screen is displayed, the following commands can be input.

STEP signal
Measurement is performed once when STEP signal turns on.
DSA signal
When "Output control" is set to "Handshaking", this is a signal to provide notification that the external device is ready to receive data.
Setting Communication Specifications (Parallel Interface)
DI signal
Commands can be input in the following format.Set 0 (OFF) or 1 (ON) for each DI signal.
Confirm commands and information, and turn DI7 (run) ON with an interval of at least 1 ms.

Item	Description	Input format (DI7 to DI0)			Input example
Item	Description	Execute (DI7)	Command (DI6, DI5)	Command information (DI4 to 0)	Input example
Continuous measurement	Measure continuously during input of commands.	1	00	***** The controller does not see this signal, so a setting of either 0 or 1 makes no difference.	Input Example: 10000000
Scene switch	Switch measurement scenes.	1	01	Input "Scene No." in binary format.	Switch to scene 2. Input Example: 10100010
Scene group switch	Switch measurement scene groups.	1	11	Input "Scene Group No." in binary format.	Switch to scene group 2. Input Example: 11100010
Clearing Measurement Values	Clear measurement values. The OR signal and DO signal are not cleared.	1	10	00000	Input Example: 11000000
Clear Error	Clear error output. The ERROR indicator is also cleared.	1	10	00001	Input Example: 11000001
Clear Parallel OR+DO	Clear the OR signal and DO signal.	1	10	00010	Input Example: 11000010

0: OFF 1:ON

Note

Important

During parallel continuous measurement and when the STEP signal is input continuously, do not perform switching of the scene group. When this is performed, set "Unchecked" in "Save scene group on scene switch" in either of the settings items below.
- Switch Scene Group windowSwitching Scene Groups
- [Measure setting] in the [Measure] menuSetting Conditions Related to Operation during Measurement

Each time measurement is performed, the measurement result is output.

Output can be selected to turn on either when the judgement result is OK or when it is an NG error.The factory default setting is "ON at NG".

Signal	Output contents
OR Signal	Overall judgement results are output.
DO 0 to 15 signal	Parallel Judgement Output The judgement results of judgement 0 to 15 set in the processing item [Parallel Judgement Output] are output to DO 0 to 15. "Processing Item List Manual", "Parallel Judgement Output"

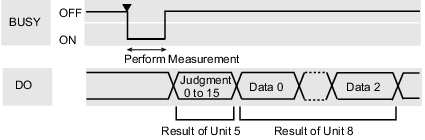

DO 0 to 15 signal	Parallel Data Output The measurement values set in data 0 to 7 in the processing item [Parallel Data Output] are output in 16-bit format."Processing Item List Manual", "Parallel Data Output" Only integers are output.Decimals are rounded up. The range of values that can be output is as follows: When in binary format: -32768 to +32768 When BCD format: -999 to +999 When measurement values are outside of these ranges, the following apply. For binary format: When measurement value is < -32768: -32767 is output. When measurement value is > +32768: +32768 is output. For BCD format: When measurement value is < -999: -999 is output. When measurement value is > +999: +999 is output. For the output format, select from a 2's complement binary format or BCD format. For a definition of 2's complement, see Terminology Explanations. Output Sequence Measurement results are output in sequence starting with the smallest processing unit No. Example) When [Parallel Judgement Output] is processing unit 5 and [Parallel Data Output] is processing unit 8

Note

After measurement, the data output by the OR signal or DO signal is held until the next measurement is performed.Note that the output state will be maintained even after measurement is complete.
However, when [One-shot OR signal] is on in Setting Communication Specifications (Parallel Interface), the OR signal will turn off after the set output time has elapsed.
The output signal factory default setting is OFF, but the signal may be ON for approx. 0.5 sec when power is turned on.Be careful of signal loading occurring at external devices.
