Parallel Judgement Output

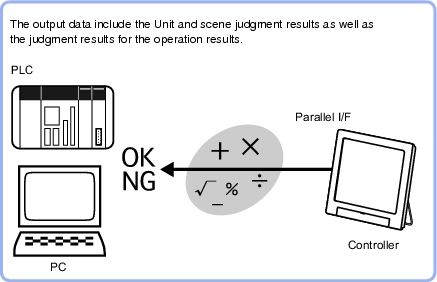

Used when outputting judgement results to external devices such as a programmable controller or PC via the parallel interface.

Important

When performing measurements in the adjustment window, the values are only output when external output is enabled by the following method during the measurement.
- In the "Control" area, check "Output" in [Image display setting].
When the measurement is executed in the RUN window, output is executed regardless of the external output setting.
Even if this processing item is not set up in the scene, the overall judgement for the set processing items is still output via the OR signal from the parallel interface.
