Changing Display Contents

The display contents of the image display area can be changed in order to make the measurement status easier to understand.
  1. Tap the image to be changed.
    Main Screen - Image Display Area
  2. From the measurement flow, tap the processing unit to be displayed.
    Main Screen Flow
  3. Set each item in [Image view setting] of the "Control" area.
    Main screen - Image view setting
    Item
    Description
    Image mode
    This item changes the camera image mode.
    Image Mode List
    Positions
    Measurement results are displayed as a list in the image display area.
    Display contents are classified into "Input image" units such as [Camera Image Input] and [Camera Switching], and "Compensate image" units such as [Filtering] and [Position Compensation].
    For example, if "Positions" is turned on with [Position Compensation] selected, a combined positions list for units after [Position Compensation] is displayed. The units in the area before [Position Compensation] are not displayed.
    Sub image No.
    Indicates displayable image for the selected processing item.
    List of sub image numbers
    Note
    • To check detailed results for each unit when "Positions" is on, select any unit after selecting the "Detail result" area to make detailed results active.To make detailed results inactive, select the image display area.

Image Mode List

Changes can be made in the ADJUST window.
Item
Description
Camera Image Through
The latest image is always loaded from the camera and displayed.
When "Through" is selected, saved images cannot be called up for measurement.
Camera Image Freeze
The image that was scanned in the immediately preceding measurement is displayed. Images can be updated at any time during measurement.
Last NG
The latest NG error image resulting from an overall judgement is displayed.
The latest measurement results are always shown in overall judgement and measurement time. In this case, the overall judgement result and measurement time may conflict with the camera images.
Also, during continuous measurement, "Last NG" cannot be displayed.
Note
  • Tapping the image display area or flow when "Last NG" is displayed and made active clears the screen.Be sure to capture "Last NG" before performing any other operation.
  • If a measurement trigger is input during multi-input status or immediately after BUSY is turned off (during display update processing, etc.), "Last NG" cannot be displayed.
  • [Display Last NG Image] fulfills a similar function as a processing item in which up to 4 NG error images can be saved.If this processing item is used, "Last NG" can be acquired without operation having any effect on acquisition.

List of Sub Image Numbers

Classification
Processing item
Sub image number and display
2D measurement
ECM Search
0: Measurement image
1: Measurement image displayed with matching edges overlaid
Edge Positions
0: Measurement image
1: Profile display
Number of Edge Pins
0: Measurement image
1: Profile display
Scan Edge Positions
0: Measurement image
1: Scan region
Scan Edge Widths
0: Measurement image
1: Scan region
Area Gravity Center
0: Measurement image
1: Extracted image
Labeling
0: Measurement image
1: Extracted image
Sophisticated Labeling+
0: Measurement image
1: Color extraction image
Defects/Contamination
0: Measurement image
1: Defect profile [when area measurement is present]
High-precision Defects/Contamination Detection
0: Measurement image
1: Defect profile [when area measurement is present]
Fine Matching
0: Measurement image
1: Difference image display
Measurement Image Switching
0: Reset image
1: Measurement image
Position Compensation
0: After compensation
1: Before compensation
Trapezoidal Distortion Compensation+
0: Post-conversion image
Color Extraction Filter
0: Color extraction image
1: Measurement image
Striped Pattern Suppression+
0: Post-conversion image
Halation Suppression+
0: Color extraction image
Panorama+
0: Post-combination image
Polar Transformation
0: Post-conversion image
1: Measurement image
Image File Display

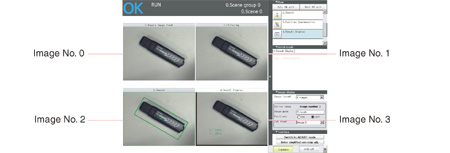

0: Image 0
1: Image 1
2: Image 2
3: Image 3
Latest NG Error Image Display
0: Last NG
1: Previous NG error image (Displayed when there are 2 or more saved images. Otherwise, "Last NG" is displayed.)
2: NG error image from 2 previous (Displayed when there are 3 or more saved images. Otherwise, "Last NG" is displayed.)
3: NG error image from 3 previous (Displayed when there are 4 or more saved images. Otherwise, "Last NG" is displayed.)
