Arranging the RUN Window

Displaying Multiple Windows Together

Multiple images can be displayed side by side in the image display area.
  1. In "Image view setting" of the Main screen "Control" area, tap [Icon] of the Image Layout menu and select the number of images to be displayed.
    The camera image view in the image display area switches according to the selected contents.
    Main screen - Image view setting
    There are the following four image display patterns.
    Item
    Description
    1 image
    Displays 1 image. Since images are enlarged, this is ideal for checking details.
    Camera Image Display Layout - One image
    2 images
    2 images are displayed side by side.
    Suitable for when 2 cameras are connected and images are to be checked all at one time.

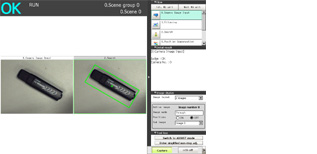

    Camera Image Display Layout - Two images
    4 images
    4 images are viewed together with one each at the left, right, upper, and lower positions.

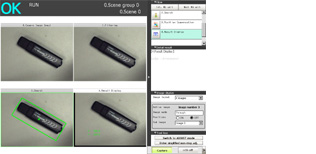

    Camera Image Display Layout - Four images
    Suitable for when 4 cameras are connected and images are to be checked all at one time.
    Thumbnail display
    Displays four small images at the bottom and also one larger selected image.
    This view is preferable when you wish to check details of a certain image when four cameras are connected.
    Thumbnail display is not available in the RUN window (Fast view mode). When using the thumbnail display in the ADJUST window, the display will change to 4 images if you switch to the RUN window (Fast view mode).

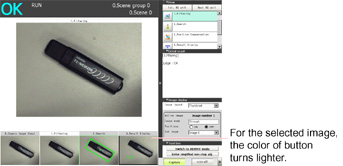

    Camera Image Display Layout - Thumbnail images
  2. Select which processing unit image to display for each image.
    After tapping the display assignment to change, tap the relevant processing unit in the measurement flow.
