Label Data

You can specify a desired label number and obtain measurement values for that label stored by other processing units.
The processing items that can be set up as the reference objects are the following items that perform the labeling processing.
  • Labeling

Used for the following case

  • Label Offset Measurement

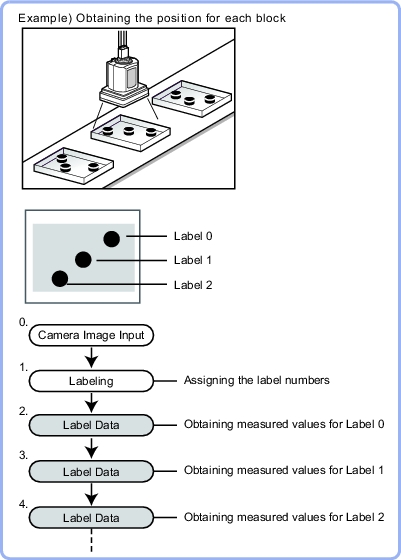

    Label Data - Overview
Note
  • Do not insert the following processing items between [Label Data] and [Labeling] Units:
    • Camera Image Input
    • Camera Switching
    • Position Compensation

List of Label Data Items

Label Data items are explained below.
Table: List of Label Data Items
Item Name
Description
Setting
Specify the unit number and label number of the processing unit that is designated as the reference object.
In addition, specify the judgement conditions for measurement results. Specify the upper and lower limit values for the area and the gravity center X/Y.
Output parameter
This item can be changed if necessary. Usually, the factory default value can be used.
Use the Output parameter to specify how to treat the coordinate.
[Output Parameter (Label Data)]
