[Output Data Setting (Parallel Judgement Output)]

[Output Data Setting (Parallel Judgement Output)]

Use the expression to set up the output data.

Up to 16 output data ranging 0 to 15 can be set up.

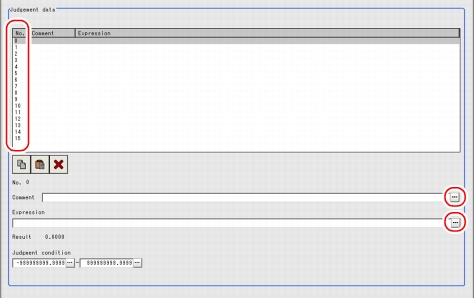

In the "Item tab" area, tap [Setting].
In the list, tap the output No. for which the expression is to be set.
The selected output No. is displayed under the list.
Tap [...] for "Comment" and input an explanation of the expression.
How to input text:User's Manual, "Inputting a Text"
Tap [...] for "Expression".
The Setting Expression window appears.
Specify an expression.
Structure and Creation of Expression

In "Judgement condition", set up the upper limit and the lower limit for judgement.

Table: Parallel Judgement Output - Output data
Setting Options	Set Value [Factory defaults]	Description
Judgement Upper Limit	-999999999.9999 to [999999999.9999]	The judge condition for expression. Specify the upper value when judge is OK.
Judgement Upper Limit	[-999999999.9999] to 999999999.9999	The judge condition for expression. Specify the lower value when judge is OK.

Step 2 to 6, set up expressions.
For details, see Setting up [Parallel Judgement Output].

For the subsequent operations, see

Setting up [Parallel Judgement Output].
