Parallel Judgement Output

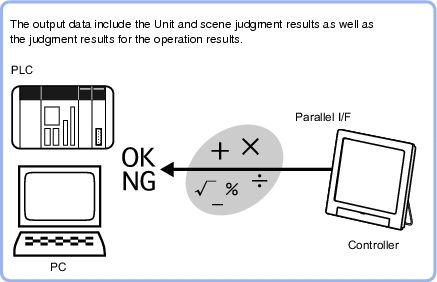

Used when outputting Judge to the external devices such as PLC or PC via the parallel interface.

Important

When performing measurements in the Adjustment window, the values are only output when output is enabled by the following method during the measurement.
- In the "Control" area, check "Output" in [Test measurement setting].
When the measurement is executed in the RUN window, output is executed regardless of the external output setting.
Even if this Processing Item is not set up in the scene, the overall Judge for the Processing Items that have been set up will still be output via the OR signal from the parallel interface.
