Additional Description
When 1 logging containing 9 or above value is output
Up to 8 Value can be output with one [Data logging] Processing Item. When 1 logging containing 9 or above value is output, the following setup should be performed.

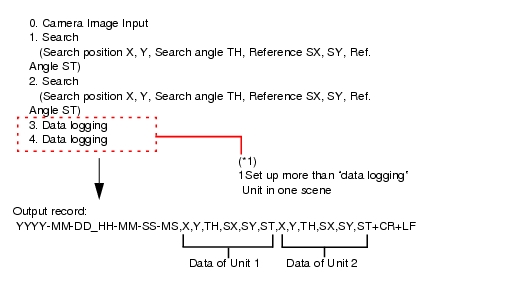

- Registers two or more [Data Logging] units in one scene.(*1)
- The setup of [File name] of [Data logging] should be identical.(*2)
- Outputs the record separator (CR+LF) at the end of each data output.(*3)
Example) When outputting the Coordinate of the 12 points which are obtained through 2 "Search" as one logging when you measure the sequence of the substrates.
Table:
Precautions when outputting more than one data as a logging
[Data logging] setting of Unit 3 Condition Setting
|
|
|
|
|
|
Output Target (File name)
|
|
Output Target (File name)
|
|
path is the same as File name
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
add CR + LF to the last data in Unit 4
|
|
|
|
Expression 0. U1.X (Search position X)
Expression 1. U1.Y (Search position Y)
Expression 2. U1.TH (Angleθ)
Expression 3. U1.SX (reference X)
Expression 4. U1.SX (reference Y)
Expression 5. U1.ST (Reference angle)
Expression 6. U2.X (Search position X)
Expression 7. U2.Y (Search position Y)
|
Expression 0. U2.TH (Search angle )
Expression 1. U2.SX (reference X)
Expression 2. U2.SY (reference Y)
Expression 3. U2.ST (Reference angleθ)
|
The data that are not included in Unit 3 will be output as the Expression 0 to 3 of Unit 4
|
