[Region Setting (Scan Edge Width)]

Specify the measurement region of [Scan Edge Width] by using a wide straight line.

In the "Item tab" area, tap [Region setting].
When a measurement region is already registered, tap [Edit]. When no measurement region is registered, go to the Step 3.
The "Figure Setting" area is displayed.
Specify the measurement area using Drawing Tools.
User's Manual, "Setting Figures"
In the "Figure setting" area, tap [OK].
The measurement range is registered and displayed in the "Image display" area.
When necessary, divide the drawn region into several parts.
Dividing the drawn region into several parts

For the subsequent operations, see

This can be set when changing the number or the width of divided parts of the region.

In the "Area divide" area, tap [...] of each item and set values.
You can set it by tapping left or right button.
How to input a value:User's Manual, "Inputting a Value"
By default, the [Scan lines] is 5 and the [Scan width] is 5.
In the "Image display" area, the figure with the change is redrawn.

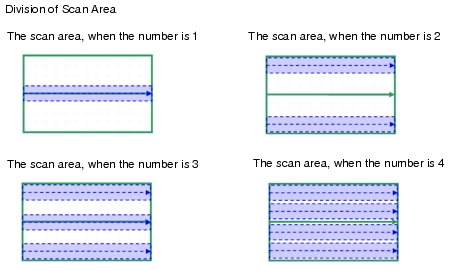

The specified region is divided equally into the specified number for [Scan lines].
