Connections Required for Measurement

Please check the connections of equipments prior to measurement, which shall be set up where necessary.

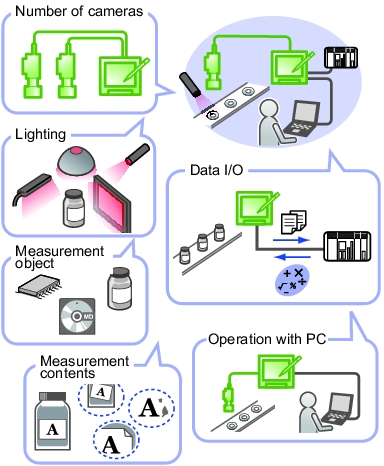

Illustration of Connections Required for Measurement
Number of Cameras and Lighting Method

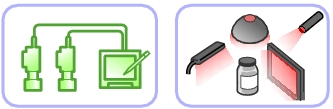

Illustration of the number of cameras and lighting method
The cameras, lightings and lighting methods may vary depending upon different measurement objects. The cameras and lighting methods optimally suited for measurement shall be discussed here.
Adjusting Camera
CCTV Lens
Data I/O
Illustration of Data I/O
When using measurement results, it's required to input measurement command from external devices, or set up I/O. Different external devices require different connections. For details, see How To Connect & Communicate With External Devices.
Operation with PC
Illustration of remote operation
PC connection and setting shall be required when inputting measurement commands or using measurement results.
For details, see How To Connect & Communicate With External Devices.
