CCTV Lens

When using a camera (single) and pattern-lighting, refer to the following table to prepare the lens and macro-conversion ring. The lens may vary from the size of measurement objects and setting distance of camera.

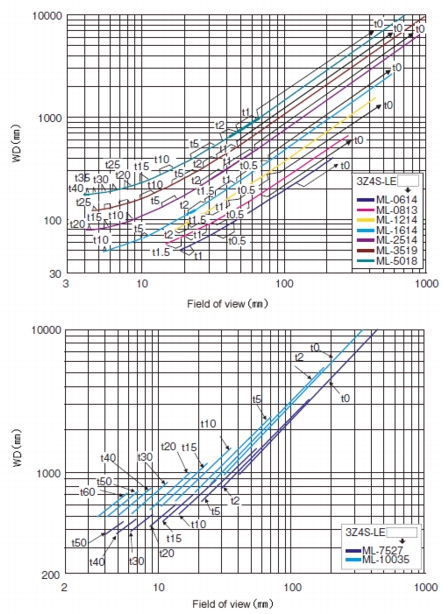

Optical Diagram

Digital camera (unit) 0.3 Mega pixels Model FZ-S

Digital camera (unit) 2Mega pixels Model FZ-S 2M

*Connecting 5 mm extension tube (Model 3Z4S-LE ML-EXR ) for FZ-LEH25 is not possible.

For high-intensity pattern illumination Model FZD-LT series

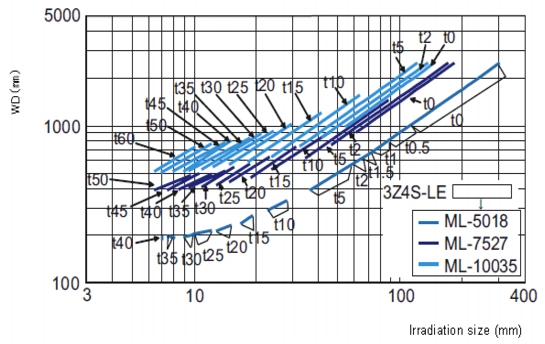

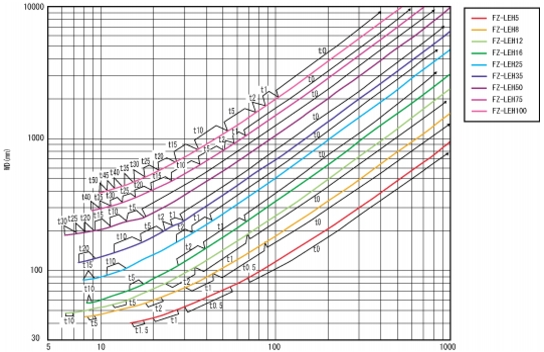

How to View Diagram

The horizontal axis of diagram indicates the Sight (L, in mm), and longitudinal axis indicates setting distance (A, in mm). This diagram shows the relationship between Sight for different types of CCTV lens and setting distance. Please verify the types and view diagram given the fact of different lens types. The length of extension tube corresponds to the point of "t5.0" on the diagram. This point is marked with "t0" if extension tube is not employed, and 5mm extension tube is marked with "t5.0".

(Example)

If Sight of measurement objects is 40mm, and 3Z4S-LE ML-5018 CCTV lens is used, the setting distance of camera is set as 500mm, and a 5mm extension tube is required.

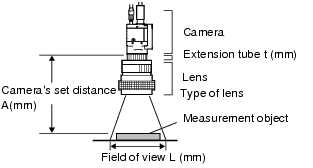

Illustration of CCTV lens and Extension tube

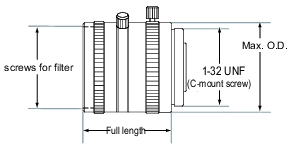

Types and Dimensions of Lens

CCTV lens 3Z4S-LE ML series

Table: Types and Dimensions of Lens (CCTV lens 3Z4S-LE ML series)
Lens Type	Focal Distance	Brightness	Max. O.D.	Full length	Filter Size
Model 3Z4S-LE ML0614	6 mm	F1.4	O30 mm	30 mm	M27 P0.5
Model 3Z4S-LE ML0813	8 mm	F1.3	O30 mm	34.5 mm	M25.5 P0.5
Model 3Z4S-LE ML1214	12 mm	F1.4	O30 mm	34.5 mm	M27 P0.5
Model 3Z4S-LE ML1614	16 mm	F1.4	O30 mm	24.5 mm	M27 P0.5
Model 3Z4S-LE ML2514	25 mm	F1.4	O30 mm	24.5 mm	M27 P0.5
Model 3Z4S-LE ML3519	35 mm	F1.9	O30 mm	29 mm	M27 P0.5
Model 3Z4S-LE ML5018	50 mm	F1.8	O32 mm	37 mm	M30.5 P0.5
Model 3Z4S-LE ML7527	75 mm	F2.7	O32 mm	42.5 mm	M30.5 P0.5
Model 3Z4S-LE ML10035	100 mm	F3.5	O32 mm	43.9 mm	M30.5 P0.5

High resolution and low distortion lens Model FZ-LEH series

Table: Types and Dimensions of Lens (High resolution and low distortion lens Model FZ-LEH series)
Lens Type	Focal Distance	Brightness	Max. outside dimension	Full length	Filter Size
Model FZ-LEH5	5mm	F2.8	φ42mm	38.7mm	M40.5 P0.5
Model FZ-LEH8	8mm	F1.4	φ34mm	41.6mm	M27.0 P0.5
Model FZ-LEH12	12mm	F1.4	φ34mm	37.0mm	M27.0 P0.5
Model FZ-LEH16	16mm	F1.4	φ33mm	36.5mm	M27.0 P0.5
Model FZ-LEH25	25mm	F1.4	φ33mm	39.5mm	M27.0 P0.5
Model FZ-LEH35	35mm	F2	φ34mm	36.5mm	M27.0 P0.5
Model FZ-LEH50	50mm	F2.8	φ34mm	55.0mm	M27.0 P0.5
Model FZ-LEH75	75mm	F2.5	φ36mm	51.0mm	M34.0 P0.5
Model FZ-LEH100	100mm	F2.8	φ50mm	70.0mm	M40.5 P0.5

Extension Tube

Extension tube, installed between lens and camera, is used to adjust focal distance. Any length can be achieved by combination of 7 tubes.

Table: Extension Tube(Model 3Z4S-LE ML-EXR)
Max. O.D.	Height
O30

Note

0.5 mm, 1.0 mm and 2.0 mm extension tubes shall not be overlapped.
Since it's installed at spiral sections of lens and other extension tubes, overlapping of over 2 tubes will lead to unstable fixation.
Extension exceeding 30 mm shall be enhanced according to different vibrating conditions.
