Saving Logging Image Data [Save to file]

Saves image data created by the logging function to the controller's RAM Disk or USB memory.
  1. When saving to USB memory, plug a USB memory device into the controller.
  2. On the Main screen, tap [Data] - [Save to file].
    The Save to File window is displayed.

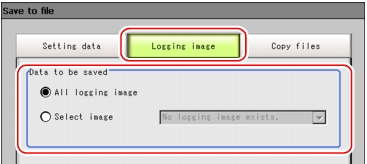

  3. Tap [Logging image] and select the file to save.
    Save to file - Logging Image window
    Table: Data to be saved/logging data
    Setting Item
    Setting value [Factory default]
    Description
    Data to be saved
    [All logging image]
    Saves all the logging images.
    Selects image
    Saves the selected logging image.
    Tap [Icon] and select the image to save.

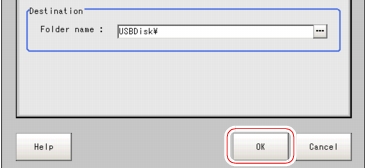

  4. Specify the destination folder.
    Save to file - Logging Image window
    1. Tap [...] of [Folder name].
      The Select Folder window is displayed.
    2. Specify the destination folder and tap [OK].
  5. Tap [OK].
    Save to file - Logging Image window
    The window to show the status of transfer is displayed, and the data is sent to the destination.
