Setting Communication Specifications (Ethernet - PLC Link)

Communication specifications such as link areas or communication speed and data length are set.
Setting Communication Specifications (RS-232C/422 - PLC Link)
Important
  • Before setting the communication specifications, set the "Serial (Ethernet)" communication module to "PLC link (SYSMAC CS/CJ/CP/One)" (or to "PLC link (MELSEC Q series)" (FZ3-9IconIcon/H9IconIcon only) in the case of a PLC by Mitsubishi Electric Corporation), save the setting, and then restart the system. When the system is restarted, the communication settings are initialized.
    Setting the Start-up Status [Startup Setting]
  • Use the same communication specification settings for the controller and the external device.
  • When making system settings/Ethernet settings, do not send external input into the Ethernet.
  1. On the Main screen, tap the [System] menu - [Communication] - [Serial] - [Ethernet].
    The Ethernet window is displayed.

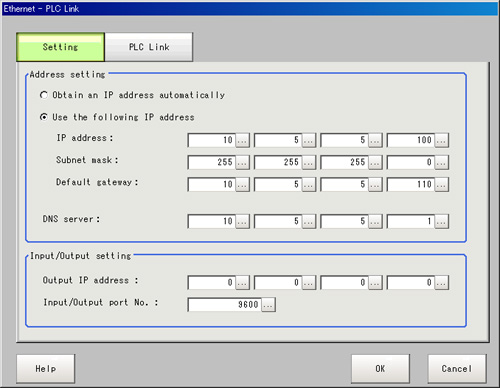

  2. In the communication setting area, set the following items.
    Ethernet - Communication settings
    Setting item
    Setting value
    [Factory default]
    Description
    Address setting
    • Obtain an IP address automatically
    • [Use the following IP address]
    Set the IP address of the controller.
    When "Obtain an IP address automatically" is selected, the IP address of the controller will be automatically obtained.
    When "Use the following IP address" is selected, set the IP address, subnet mask, and the default gateway address.
    IP address
    a.b.c.d
    a: 1 to 223
    b: 0 to 255
    c: 0 to 255
    d: 0 to 255
    [10.5.5.100]
    Input the controller IP address.
    Subnet mask
    0.0.0.0 to 255.255.255.255
    [255.255.255.0]
    Input the subnet mask address.
    Default gateway
    a.b.c.d
    a: 1 to 223
    b: 0 to 255
    c: 0 to 255
    d: 0 to 255
    [10.5.5.110]
    Input the default gateway address.
    DNS server
    a.b.c.d
    a: 1 to 223
    b: 0 to 255
    c: 0 to 255
    d: 0 to 255
    [10.5.5.1]
    Input the DNS server address.
    Input/Output setting
    Output IP address
    a.b.c.d
    a: 0 to 255
    b: 0 to 255
    c: 0 to 255
    d: 0 to 255
    [0.0.0.0]
    Input the output destination IP address.
    Input/Output port No.
    0 to 65535
    [9600]
    Set the port No. to use for data I/O with the controller.
    3. Important
    • If the operation mode (FZ3-9IconIcon/H9IconIcon only) is [Multi-line random-trigger mode], set a different I/O port No. for line 0 and line 1.
  3. Tap [PLC link setting].
    The PLC Link Setting window is displayed.

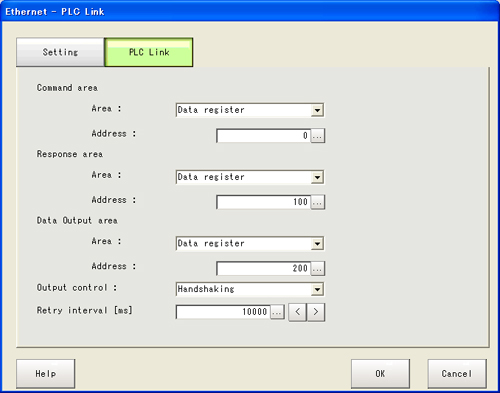

  4. Set the following items.
    Ethernet - PLC link setting
    Setting item
    Setting value
    [Factory default]
    Description
    Command area
    Area
    • [CIO Area (CIO)]
    • Work Area(WR)
    • Holding Bit Area(HR)
    • Auxiliary Bit Area(AR)
    • DM Area (DM)
    • EM Area(EMO)
    Set the Command area.
    Address
    0 to 99999
    [0]
    Set the top channel address in the Command area.
    Response area
    Area
    • [CIO Area (CIO)]
    • Work Area(WR)
    • Holding Bit Area(HR)
    • Auxiliary Bit Area(AR)
    • DM Area (DM)
    • EM Area(EMO)
    Set the Response area.
    Address
    0 to 99999
    [100]
    Set the top channel address in the Response area.
    Data output area
    Area
    • [CIO Area (CIO)]
    • Work Area(WR)
    • Holding Bit Area(HR)
    • Auxiliary Bit Area(AR)
    • DM Area (DM)
    • EM Area(EMO)
    Set the Data output area.
    Address
    0 to 99999
    [200]
    Set the top channel address in the Data output area.
    Output control
    (FZ3-9IconIcon/H9IconIcon only)
    • None
    • [Handshaking]
    Set whether or not to provide an interlock with the PLC when performing data output.
    None: Data is output regardless of the status of signals from the PLC. GATE is always OFF.
    Handshaking: Data is output after confirming DSA from the PLC.
    Retry interval [ms]
    1000 to 999999
    [10000]
    Set the communication retry interval.
    5. PLC by Mitsubishi Electric Corporation (FZ3-9IconIcon/H9IconIcon only)
    Ethernet - PLC link
    Setting item
    Setting value
    [Factory default]
    Description
    Command area
    Area
    • [Data register]
    • File register
    • Link register
    Set the Command area.
    Address
    0 to 99999
    [0]
    Set the top channel address in the Command area.
    Response area
    Area
    • [Data register]
    • File register
    • Link register
    Set the Response area.
    Address
    0 to 99999
    [100]
    Set the top channel address in the Response area.
    Data output area
    Area
    • [Data register]
    • File register
    • Link register
    Set the Data output area.
    Address
    0 to 99999
    [200]
    Set the top channel address in the Data output area.
    Output control
    • None
    • [Handshaking]
    Set whether or not to provide an interlock with the PLC when performing data output.
    None: Data is output regardless of the status of signals from the PLC. GATE is always OFF.
    Handshaking: Data is output after confirming DSA from the PLC.
    Retry interval [ms]
    1000 to 999999
    [10000]
    Set the communication retry interval.
  5. Tap [OK].
    The settings are confirmed and the Ethernet window closes.

Checking Communication Status

Use PLC tools, etc. to check the communication status.
