Setting Communication Specifications (Ethernet - Non-procedure)

Communication specifications such as communication speed and IP addresses are set for Ethernet communication.

Setting Communication Specifications (RS-232C/422 - Non-procedure)

Important

Before setting the communication specifications, set the "Serial (Ethernet)" communication module to "Normal" or "Normal (Fxxx method)" in the case of FZ3-3/H3, FZ3-7/H7. In the case of FZ3-9/H9, set to "Normal (UDP)", "Normal (TCP)" or "Normal (UDP) (Fxxx series method)". Save the setting to the controller and then restart the system.
Setting the Start-up Status [Startup Setting]
Use the same communication specification settings for the controller and the external device.
When making system settings/Ethernet settings, do not send external input into the Ethernet.
If the operation mode (FZ3-9/H9 only) is set to [Multi-line random-trigger mode], the controller address cannot be set for line 1. (The same setting for line 0 is used.)
If the operation mode (FZ3-9/H9 only) is set to [Multi-line random-trigger mode], set a different port number for line 0 and line 1.

On the Main screen, tap the [System] menu - [Communication] - [Serial] - [Ethernet].

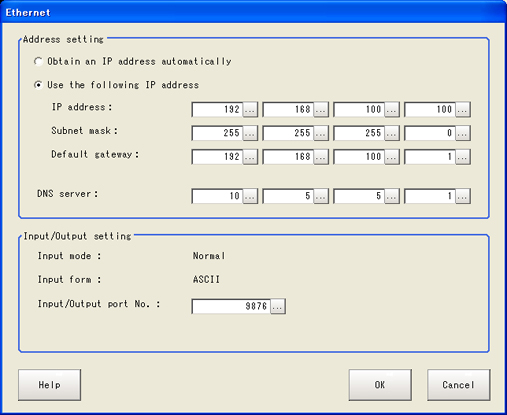

The Ethernet window is displayed.

Set the following items.

Non-procedure (TCP)

Setting item		Setting value [Factory default]	Description
Address setting
	Obtain an IP address automatically [Use the following IP address]		Set the IP address of the controller. When "Obtain an IP address automatically" is selected, the IP address of the controller will be automatically obtained. When "Use the following IP address" is selected, set the IP address, subnet mask, and the default gateway address.
	IP address	a.b.c.d a: 1 to 223 b: 0 to 255 c: 0 to 255 d: 0 to 255 [10.5.5.100]	Input the controller IP address.
	Subnet mask	0.0.0.0 to 255.255.255.255 [255.255.255.0]	Input the subnet mask address.
	Default gateway	a.b.c.d a: 1 to 223 b: 0 to 255 c: 0 to 255 d: 0 to 255 [10.5.5.110]	Input the default gateway address.
	DNS server	a.b.c.d a: 1 to 223 b: 0 to 255 c: 0 to 255 d: 0 to 255 [10.5.5.1]	Input the DNS server address.
I/O setting
	Input mode	[Normal]	This item cannot be changed.
	Input form	[ASCII]	This item cannot be changed.
	Output IP address^{[Note 1]}	a.b.c.d a: 1 to 223 b: 0 to 255 c: 0 to 255 d: 0 to 255 [0.0.0.0]	Input the output destination IP address.
	Input/Output port No.	0 to 65535 [9600] [9876][Note 2]	Set the port No. to use for data I/O with the controller. Set the same No. as on the host side.

[Note 1]: It is not displayed if the communication module is set to "Normal (TCP)".
[Note 2]: The initial setting value becomes [9876] only when the communication module is set to [Normal (TCP)].

Setting the Start-up Status [Startup Setting]

Tap [OK].
The settings are confirmed and the Ethernet window closes.
