Settings (Parallel Judgement Output)

This sets the data for outputting judgement results in parallel.
Up to 16 target data items (0 - 15) can be set.
  1. In the Item Tab area, tap [Setting].
  2. In the list, tap the output No. for which the expression is to be set.

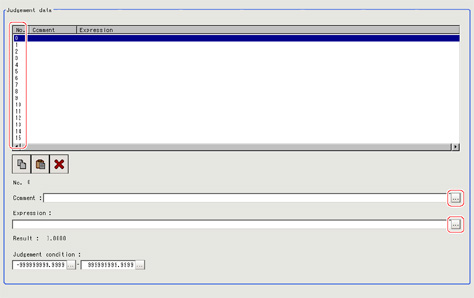

    Settings - Judgement data
    The selected output No. is displayed under the list.
  3. Tap [...] for the expression and set the expression.
  4. In "Judgement condition", set the judgement upper limit and lower limit.
    Setting item
    Set value
    Description
    Judgement condition
    -999999999.9999 to 999999999.9999
    This is a judgement condition for the expression. Specify the upper/lower limits to be judged as OK.
  5. Input an explanation of the expression in "Comment" as necessary.
  6. Repeat steps 2 to 4 and set up the output contents for each output number.
