Parameter Settings (Processing Unit Figure Setting)

Parameter Settings (Set Unit Figure)

Select the target unit to overwrite.

Tap [...] for "Register figure No." and specify a figure number for modification.

The selected image is displayed in the image area.

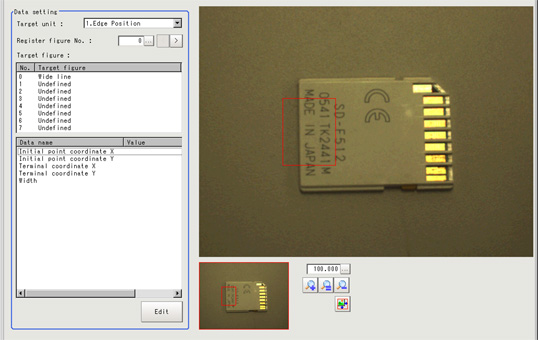

Processing Unit Figure Setting - "Data setting" area

The assignment of figure numbers varies depending on processing items. The following table shows the register figure numbers assigned to each processing item.

Processing item	Figure No.	Item
Search	0	Model Registration
Search	1	Region Setting (Measurement Region Range)
Flexible Search	0	Model (Model 0)
	1	Model (Model 1)
	2	Model (Model 2)
	3	Model (Model 3)
	4	Model (Model 4)
	5	Region Setting (Measurement Region Range)
Sensitive Search	0	Model Registration
Sensitive Search	1	Region Setting (Measurement Region Range)
ECM Search	0	Model - Edit
	1	Region Setting (Measurement Region Range)
	2	Model - Mask
	3	Error model - Edit
	4	Error model - Mask
EC Circle Search	0	Model Registration
EC Circle Search	1	Region Setting (Measurement Region Range)
Shape Search+	0	Model Registration
Shape Search+	1	Region Setting (Measurement Region Range)
Classification	0	Model (Index 0: Model 0)
	1	Model (Index 0: Model 1)
	2	Model (Index 0: Model 2)
	3	Model (Index 0: Model 3)
	4	Model (Index 0: Model 4)
	5	Model (Index 1: Model 0)
	6	Model (Index 1: Model 1)
	· · ·	· · ·
	179	Model (Index 35: Model 4)
	180	Auto registration region setting
Edge Position	0	Region setting
Edge Pitch	0	Region setting
Scan Edge Position	0	Region setting
Scan Edge Width	0	Region setting
Color Data	0	Region setting
Gravity and Area	0	Region setting
Labeling	0	Region setting
Labeling+	0	Region setting
Defect	0	Region setting
Precise Defect	0	Region setting
Fine Matching	0	Model Registration
Character Inspection	0	Region setting
Model Dictionary	0	Model (Index 0: Model 0)
	1	Model (Index 0: Model 1)
	2	Model (Index 0: Model 2)
	3	Model (Index 0: Model 3)
	4	Model (Index 0: Model 4)
	5	Model (Index 1: Model 0)
	6	Model (Index 1: Model 1)
	· · ·	· · ·
	179	Model (Index 35: Model 4)
	180	Auto registration region setting
Barcode+	0	Region setting
2D Code+	0	Region setting
Circle Angle	0	Region setting
Position Compensation	0	Region setting
Trapezoidal Correction+	0	Region setting
Filtering	0	Region setting
Background Suppression	0	Region setting
Color Gray Filter	0	Region setting
Extract Color Filter	0	Region setting
Anti Color Shading	0	Region setting
Stripes Removal Filter+	0	Region setting
Halation Cut+	0	Region setting
Polar Transformation	0	Region setting

Tap the target figure number for overwriting.
Tap the data name you would like to overwrite.
Tap [Edit] to set up the overwrite details using an expression.
Layout of Setting Expression Window
Tap [OK].
An area is displayed on the image based on settings.
