Processing Items List Manual
 Processing Item List > Support measurement > Set Unit Figure

Set Unit Figure

Used in the Following Case

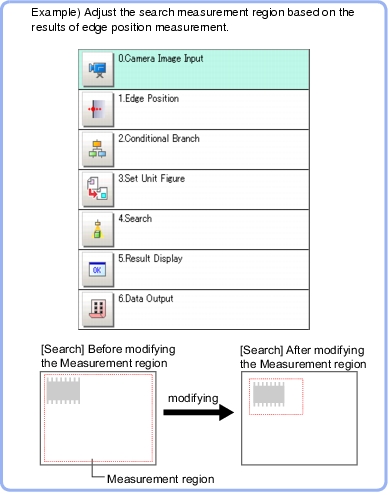

  • When changing the measurement area based on the measurement results
    Processing Unit Figure Setting - Overview
Important
  • Do not insert " Input image" processing items or " Compensate image" processing items between the " Set Unit Figure" and the target processing unit.
    Input image
    Compensate image
