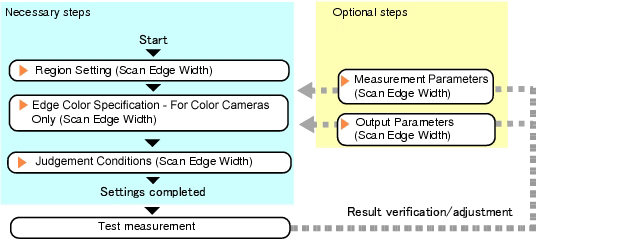

Region setting

This item is used to set up the measurement area.

Edge color
(for color cameras only)

This item selects the color information for the edges to be detected.

Measurement

This item changes the measurement parameter as necessary when the measurement result is unstable.
The displayed items depend on whether your camera is a color or monochrome camera.Normally, the factory default value will be used.
Measurement Parameters (Scan Edge Width)

Judgement

This item specifies the judgement condition for measurement results.
Judgement Conditions (Scan Edge Width)

Output parameter

This item can be changed if necessary.Normally, the factory default value may be used.
Select the measurement result coordinates and set how to handle the coordinates.
Output Parameters (Scan Edge Width)
