Region Setting (Scan Edge Widths)

This item is used to set up the measurement area.

Specify the measurement region of [Scan Edge Width] by using a wide line.

In the Item Tab area, tap [Region setting].
Use the Drawing tools to specify the measurement region.
To align with the measurement area and change the number of divisions, uncheck this.
In the figure setting area, tap [OK].
The measurement region is registered and displayed in the Image Display area.

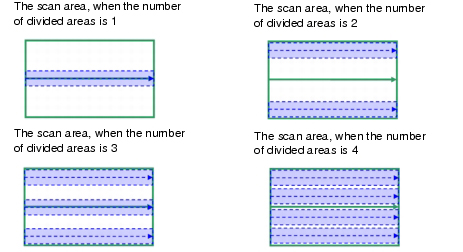

In the "Area divide" area, specify the number of divisions and their width.
By default, the number of scan lines is 5 and the scan width is 5.
The region is divided equally.
Note
- You can specify enable/disable for each divided region.Tapping a divided region displays the following screen.
