Settings Flow (Labeling)

Labeling can be set up as follows.

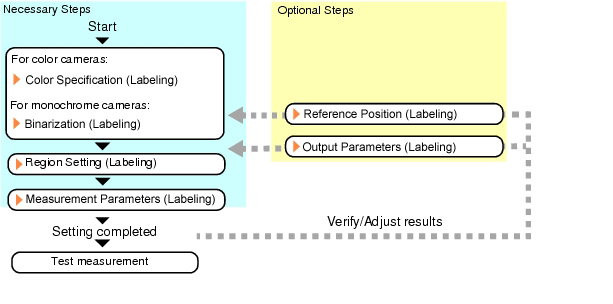

Labeling - Operation flowRegion SettingMeasurement ParametersOutput ParametersReference PositionColor SpecificationBinarization

List of Labeling Items

Item name
Description
Color
(for color cameras only)
This item selects the color whose area and center of gravity are to be measured.Since the color hue, color saturation, and brightness can be selected, then fine-tuning can be performed to colors.
Color Specification (Labeling)
Binary
(for monochrome cameras only)
This item specifies the binary level for converting 256-tone grayscale images input from the camera into binary images.
Converted white pixels are measured.Adjust the binary level so that the measurement object is converted to white pixels.
Binarization (Labeling)
Region setting
This item is used to set up the measurement area.
While the input image can be measured as a whole, a quick and reliable measurement can be performed by set up the measured range.
Region Setting (Labeling)
Ref. position
This item can be changed if necessary.Usually, the central position of the registered region is registered as the reference position.
Reference Position (Labeling)
Measurement
This item specifies the judgement condition for measurement results.It specifies the upper and lower limit values for the number of labels, the area and the center of gravity X and Y.
Measurement parameter can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Measurement Parameters (Labeling)
Output parameter
This item can be changed if necessary.Normally, the factory default value may be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Labeling)
