Measurement Parameters (Number of Edge Pins)

This item specifies the judgement condition for measurement results.Also specify the range for positions to be judged as OK.

In the Item Tab area, tap [Measurement].

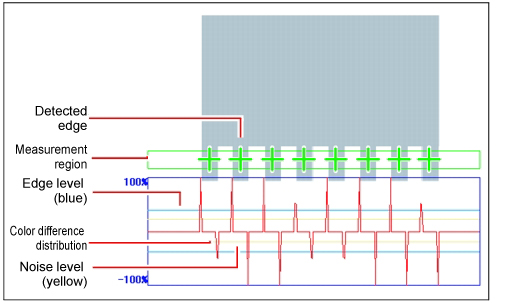

The edge profile of the measurement region (straight line) is displayed in the Image Display area.

If necessary, specify a value for each item in the "Measurement condition" area.

For color cameras:

Setting item	Set value [factory default]	Description
Edge level	0 to 100 [50]	Specify a color changing level with which the edge is detected. When the measurement result is lower than the actual number of edges, specify a smaller value for the edge level.On the other hand, when the measurement result is higher than the actual number of edges, specify a larger value for the edge level. See "User's Manual", "Edge level"
Edge color level	0 to 442 [100]	Set the emphasis level for the edge color specified with [Edge color].

For monochrome cameras:

Important

Up to 1000 edges can be measured, but only a maximum of 256 can be displayed on the screen.

Setting item	Set value [factory default]	Description
Color to count	[White] Black	Select an edge color to be measured.
Mode	[Normal] Precise	If the pin width or gap is less than 2 pixels, select precise.
Edge level	0 to 100 [50]	Specify the density change level to be detected as edges. When the measurement result is lower than the actual number, specify a smaller value for the edge level (or the minimum level).On the other hand, when the measurement result is higher than the actual number, specify a larger value for the edge level (or the minimum level). See "User's Manual", "Edge level"

If necessary, set each item in the "Noise removal" area.

Setting item	Set value [factory default]	Description
Noise level	0 to 442 [5]	When detection is affected by noise, increase this value. See "User's Manual", "Noise level"
Noise width	0 to 9999 [0]	Set the width for judging noise. When detection is affected by noise, increase this value. See "User's Manual", "Noise width"

When the setting has been changed, tap [Measurement] in the Detail area to verify whether measurements can be made correctly.
Set up the judgement condition.
Setting item
Set value
Description
Edges
0 to 999
Specify a range to be judged as OK.
Pitch
0 to 99999.9999
Ave pitch
0 to 99999.9999
Width
0 to 99999.9999
Average width
0 to 99999.9999

Setting item	Set value	Description
Edges	0 to 999	Specify a range to be judged as OK.
Pitch	0 to 99999.9999
Ave pitch	0 to 99999.9999
Width	0 to 99999.9999
Average width	0 to 99999.9999
