Edge Pitch

Finds and counts the edges by measuring the color change within the measurement region.

Used in the Following Case

  • When calculating number of pins of IC or connectors
    Number of edge pins - Overview

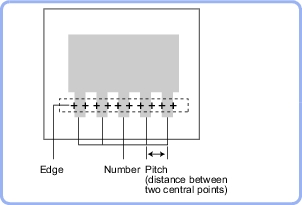

  • To calculate the pin width and the distance (pitch) between mid-points between two pins
    Number of edge pins - Overview
Note
