Edge Color Specification - For Color Cameras Only (Edge Pitch)

Specify the target color to be counted.
  1. In the Item Tab area, tap [Edge color].
  2. Specify the target color for the edges to be counted (used as the reference color for edge detecting).

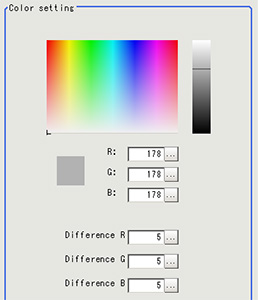

    Edge color specification - Color setting area
    Setting methods
    Description
    Image Display area
    Specify a region on the image that includes the target color.The average color of the specified region is registered.
    Color chart
    Tap the color on the color chart to specify it.The RGB values for the specified color are displayed at the bottom.
    R, G, B
    The color to be detected is set with the RGB values.
    Difference R, G, B
    This sets the allowable color difference for detecting the edge, using the specified color as the reference.The larger the difference values, the larger the color range that is used to detect the edge.
