Layout of Main Screen (RUN Window)

This window is used during operation.

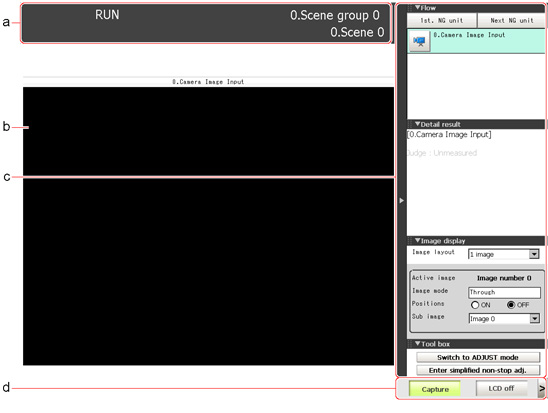

Illustration of Layout of Main Screen (RUN Window)Measurement Information Display AreaImage Display AreaControl AreaMeasurement Manager Bar
  1. Measurement Information Display Area
    Illustration of Measurement Information Display Area on the Main ScreenScene Group Name, Scene NameOverall judgementProcessing time
    1. Overall judgement
      Displays a scene's overall judgement result ( [OK]/ [NG]).
      The judgement results for each processing unit are displayed in the Control area.
    2. Processing time
      Displays the time required for the measurement process.
    3. Scene Group Name, Scene Name
      Displays the scene group number and the scene number of the currently displayed scene.
  2. Image Display Area
    Displays the measured image.

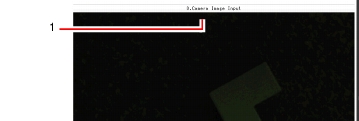

    Explanation of Image Display AreaProperty setting buttons
    1. Property setting buttons
      Displays the name of the currently selected processing item.
  3. Control Area
    Displays [Flow], [Detail result], [Image display], and [Tool box].
    • Flow
      Displays the judgement results for the flow and each unit.
      Main screen "Control" area - Flow
      1. Moves to the top processing unit with an NG error.
      2. Moves to the next processing unit with an NG error.
    Note
    • The size of the processing unit buttons can be changed through [View] menu - [Display the enlarged flow] in the ADJUST Window.
    • Detail result
      The detailed measurement results of the processing units selected in the measurement flow are displayed as text.
      Main screen "Control" area - Detailed results
    • Image display
      Sets the display method for the Image Display area.
      Main screen "Control" area - Image display settings
    • Tool box
      Starts and stops simplified non-stop adjustment, and switches to the ADJUST window.
      Items for which operation is performed in the ADJUST window can be allocated to buttons, and they can then be executed in the RUN window.
      Main screen "Control" area - Tool box
  4. Measurement Manager Bar
    Measurement Manager Bar[LCD Off][Capture]
    1. [Capture]
      Saves the content displayed on the monitor as an image.
      Set the save destination for captured images.
    2. [LCD Off] (Displayed only with LCD-integrated controllers.)
      Turns off power to the LCD monitor. Tap the bottom of the monitor screen to turn on power to the LCD monitor again.
