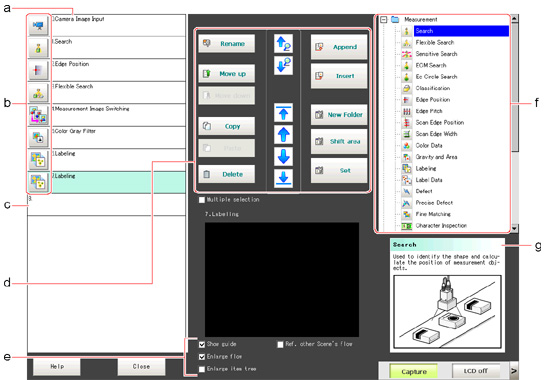

Layout of Edit Flow Window

1. Unit List
   Lists the processing units included in the flow.
   You can create a flow for a scene by adding processing items to the unit list.
2. Property Setting Buttons
   Displays the property setting window where detailed settings can be performed.
3. End Marker
   Indicates the end of the flow.
4. Edit Flow Buttons
   • Search up/Search down
     Searching can be performed to find out what position a processing item occupies in the unit list.
     The icon for the processing item to be searched for is selected in the processing item tree and clicked.
     This function is convenient when setting long flows.
   • Select top/Select bottom
     Selects the processing unit at the top or bottom of the flow.
   • Select above/Select below
     Selects the processing unit located one above or one below the currently selected processing unit.
   • Rename
     Displays a window for renaming the selected processing unit.
   • Move up/Move down
     Moves the selected processing unit upward or downward.
   • Copy
     Copies the selected processing unit.
   • Paste
     Pastes the copied processing unit immediately before the selected processing unit.Pasting cannot be performed if any operations other than paste are performed after copying.
   • Delete
     Deletes the selected processing unit.
   • Append (Bottom)
     Adds a processing unit to the bottom of the flow.
   • Insert
     Inserts a new processing unit immediately before the selected processing unit.
   • New folder
     Used when multiple processing units are managed as one group.
   • Shift area
     Changes related figure data in one batch.
   • Multiple selection
     Used when processing units are copied or deleted together.
   • Set
     Displays the processing item setting window for the selected processing unit.
5. Display Options
   • Show guide
     When checked, explanations for processing items are displayed.
   • Enlarge flow
     When checked, the "a Unit list" flow is displayed with large icons.
   • Enlarge item tree
     When checked, the "f Processing item tree" is displayed with large icons.
   • Ref. other Scene's flow
     When checked, other scene flows within the same scene group can be referred to.
6. Processing Item Tree
   This area is for selecting processing items to add to the flow.Processing items are classified by type and displayed as a tree. Tapping the plus sign "+" of any item displays expanded contents below that item. Tapping the minus sign "-" of any item collapses the expanded contents.
   When "Ref. other Scene's flow" is checked, the scene select box and other scene flows are displayed.
7. Guide
   Shows an explanation for the processing item selected in the processing item tree.These are used as reference when selecting processing items. To display guides, check "Show guide" in "e Display options".
