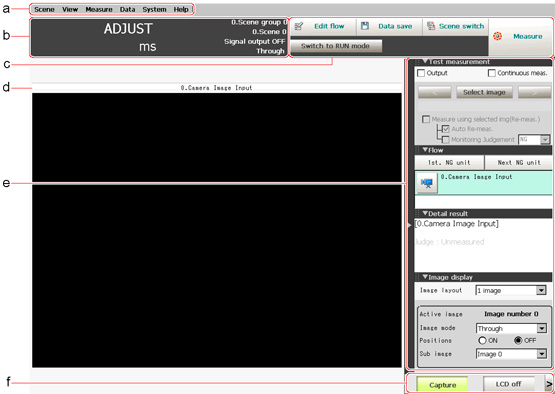

Layout of Main Screen (ADJUST Window)

1. Menu Bar
   Select operations and settings menus related to measurement.
2. Measurement Information Display Area

   1. Overall judgement
      Displays a scene's overall judgement result ( [OK]/ [NG]).
   2. Processing time
      Displays the time required for the measurement process.
   3. Status display
      Displays the scene group number, scene number, external output status, and image mode for the currently displayed scene.
3. Toolbar
   Commonly-used functions appear in the toolbar.
   • Edit flow
     The Edit Flow window is displayed. Addition and deletion of processing units and switching of the processing sequence is performed in the Edit Flow window.
   • Data save
     Setting data is saved into the internal flash memory in the controller. Make sure to save when settings have been modified.
   • Scene switch
     To switch a scene group or scene.
   • Measure/Stop meas.
     Starts/stops measurement.
   • Switch to RUN mode
     Switches to the RUN window.
4. Image Display Area
   Displays the measured image.

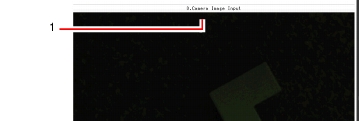

   1. Property setting buttons
      Displays the name of the currently selected processing item.Moving to the property setting window can be done by tapping here.
5. Control Area
   Displays "Test measurement", "Flow", "Detail result", and "Image display".
   • Test measurement
     Use when test measurement conditions and images that have been acquired are used for remeasurement.

   • Flow
     Displays the judgement results for the flow and each unit.

     1. Moves to the top processing unit with an NG error.
     2. Moves to the next processing unit with an NG error.
   • Detail result
     The detailed measurement results of the processing units selected in the measurement flow are displayed as text.

   • Image display
     Sets the display method for the Image Display area.

6. Measurement Manager Bar

   1. [Capture]
      Saves the content displayed on the monitor as an image.
      Set the save destination for captured images.
   2. [LCD Off] (Displayed only with LCD-integrated controllers.)
      Turns off power to the LCD monitor. Tap the bottom of the monitor screen to turn on power to the LCD monitor again.
