Processing Items List Manual
 Processing Item List > Supporting Inspection and Measurement > Processing Unit Figure Setting > Parameter Settings (Processing Unit Figure Setting)

Parameter Settings (Processing Unit Figure Setting)

  1. Select the target unit to overwrite.

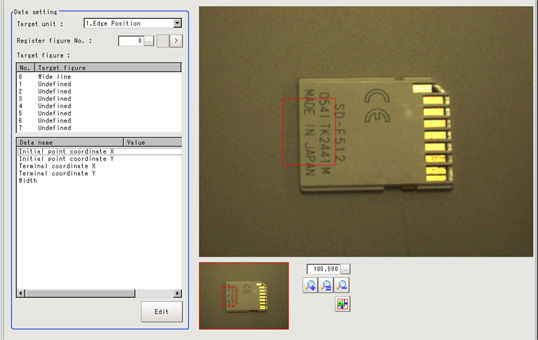

    Processing Unit Figure Setting - "Data setting" area
  2. Tap [...] for "Figure No. to register" and specify a figure number for modification.
    The selected image is displayed in the image area.
    Processing Unit Figure Setting - "Data setting" area
    The assignment of figure numbers varies depending on processing items. The following table shows the register figure numbers assigned to each processing item.
    Processing item
    Figure No.
    Item
    Search
    0
    Model Registration
    1
    Region Setting (Measurement Region Range)
    Flexible Search
    0
    Model (Model 0)
    1
    Model (Model 1)
    2
    Model (Model 2)
    3
    Model (Model 3)
    4
    Model (Model 4)
    5
    Region Setting (Measurement Region Range)
    Sensitive Search
    0
    Model Registration
    1
    Region Setting (Measurement Region Range)
    ECM Search
    0
    Model - Edit
    1
    Region Setting (Measurement Region Range)
    2
    Model - Mask
    3
    Error model - Edit
    4
    Error model - Mask
    EC Circle Search
    0
    Model Registration
    1
    Region Setting (Measurement Region Range)
    Shape Search+
    0
    Model Registration
    1
    Region Setting (Measurement Region Range)
    Classification
    0
    Model (Index 0: Model 0)
    1
    Model (Index 0: Model 1)
    2
    Model (Index 0: Model 2)
    3
    Model (Index 0: Model 3)
    4
    Model (Index 0: Model 4)
    5
    Model (Index 1: Model 0)
    6
    Model (Index 1: Model 1)
    ･
    ･
    ･
    ･
    ･
    ･
    179
    Model (Index 35: Model 4)
    180
    Region Setting (Measurement Region Range)
    Edge Positions
    0
    Region setting
    Number of Edge Pins
    0
    Region setting
    Scan Edge Positions
    0
    Region setting
    Scan Edge Widths
    0
    Region setting
    Color Average and Deviation
    0
    Region setting
    Area Gravity Center
    0
    Region setting
    Labeling
    0
    Region setting
    Sophisticated Labeling+
    0
    Region setting
    Defects/Contamination
    0
    Region setting
    High-precision Defects/Contamination Detection
    0
    Region setting
    Fine Matching
    0
    Model Registration
    Character Inspection
    0
    Region setting
    Barcodes+
    0
    Region setting
    2D Codes+
    0
    Region setting
    Circular Shape Angle Acquisition
    0
    Region setting
    Position Compensation
    0
    Region setting
    Trapezoidal Distortion Compensation+
    0
    Region setting
    Filtering
    0
    Region setting
    Background Suppression
    0
    Region setting
    Color Gray Filter
    0
    Region setting
    Color Extraction Filter
    0
    Region setting
    Color Contrast Suppression
    0
    Region setting
    Striped Pattern Suppression+
    0
    Region setting
    Halation Suppression+
    0
    Region setting
    Polar Transformation
    0
    Region setting
  3. Tap the target figure number for overwriting.
    Processing Unit Figure Setting - "Data setting" area
  4. Tap the data name you would like to overwrite.
    Processing Unit Figure Setting - "Data setting" area
  5. Tap [Edit] to set up the overwrite details using an expression.
    Processing Unit Figure Setting - "Data setting" area
    Layout of Setting Expression Window
  6. Tap [OK].
    An area is displayed on the image based on settings.
    Processing Unit Figure Setting - "Data setting" area
