Processing Unit Figure Setting

Used in the Following Case

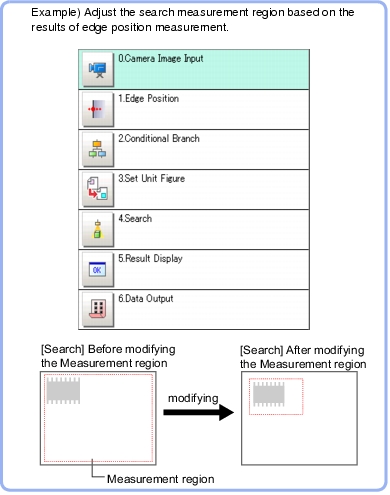

  • When changing the measurement area based on the measurement results
    Processing Unit Figure Setting - Overview
Note
  • Do not insert the following processing items between the Processing Unit Figure Setting and the target processing unit.
    • Camera Image Input
    • Camera Switching
    • Filtering
    • Position Compensation
