Settings Flow (Color Average and Deviation)

Set the color data with the following steps.

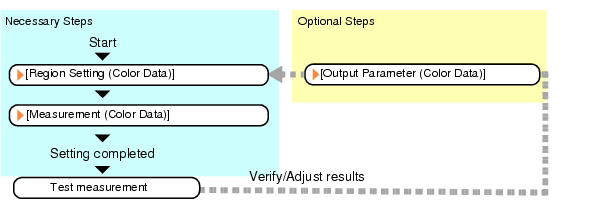

Color data - Operation flowRegion settingMeasurement parameterOutput parameter

List of Color Data Items

Item name
Description
Region setting
This item is used to set up the measurement area.
While the input image can be measured as a whole, a quick and reliable measurement can be performed by set up the measured range.
Region Setting (Color Average and Deviation)
Measurement parameter
This item specifies the judgement condition for measurement results.
  • For color cameras:
    Set the average color (RGB) value and deviation and set what the maximum difference is for judging the object to be OK.
  • For monochrome cameras:
    Specify the average density value and deviation and set what the maximum difference is for judging the object to be OK.
Measurement parameter can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Measurement Parameters (Color Average and Deviation)
Output parameter
This item can be changed if necessary.Normally, the factory default value will be used.
Specify whether to reflect the judgement result to the overall judgement of the scene.
Output Parameters (Color Average and Deviation)
