NG Error Judgement (Latest NG Error Image Display)

Sets conditions for NG judgement.

Set the judgement mode in the "NG save setting" area.

Setting item	Set value [factory default]	Description
Judgement mode	[One NG]	The image is saved even if only one of the judgement criteria set using "Judgment operational expression" has a judgement of NG.
Judgement mode	All NG	The image is saved if all of the judgement criteria set using "Judgment operational expression" have a judgement of NG.

The measurement details used for NG judgement are set using an expressions.

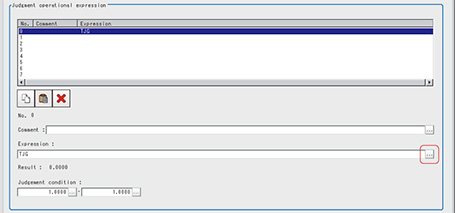

Tap the "No." for setting the expression from the list in the "Expression setting" area
The No. selected will be displayed below the list.
Tap […].
The Setting Expression window is displayed.
Set the judgement operational expression.

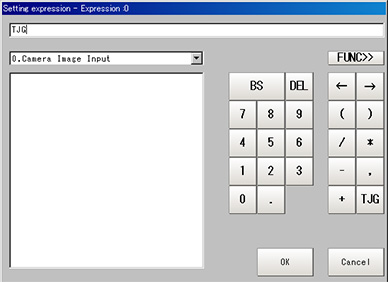

Layout of Setting Expression Window
After setting the expression, tap [OK].
The expression is confirmed.
Tap [...] for "Comment" and input an explanation of the expression as necessary.
Set up the judgement upper limit and the judgement lower limit for "Judgement".
Setting item
Set value
[Factory default]
Description
Judgement condition
-999999999.9999 to 999999999.9999
This is a judgement condition for the expression. Set upper and lower limits for judging as OK.
Repeat the Steps1to6and set up the expression.
