Line 0 (Linear Regression)

  1. In the item tab area, tap [Line 0].
  2. Set each item in the "Parameter" area.
    Line 0 - "Parameter" area
    Setting item
    Set value
    [Factory default]
    Description
    • [OFF]
    • ON
    When a check is placed at [ON], an approximate line is found by excluding the points with large deviation among the measured points.
    Setting Methods
    • [Nearest unit]
    • Expression
    Nearest unit: Calculated from data of several continuous coordinate measurement units that were just performed.The number of units referenced is indicated by the Number of points. If a unit where coordinate measurement is not performed is included in Nearest unit, calculation will not be performed properly and measurement will be NG.
    Calculation: Calculated from expression set up.
    Number of points
    [2] to 8
    Set up the number of coordinate points used for calculation.
  3. Tap [OK].

When Calculation is Selected

  1. Tap […].

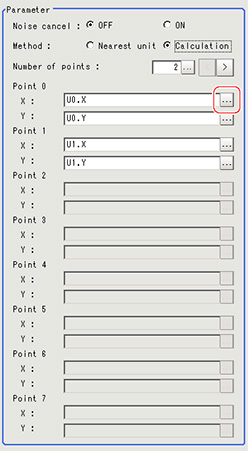

    Line 0 - "Parameter" area
    The Setting Expression window is displayed.
  2. Set up the expression.
    Sub-menus that can be set in expressions depending on the processing unit are displayed.When the sub-menu is tapped, it is added to the Exp.
    Setting Expression window - No function displayed
    Layout of Setting Expression Window
  3. After setting up the expression, tap [OK].
    The expression is confirmed.
