Settings Flow (Barcodes+)

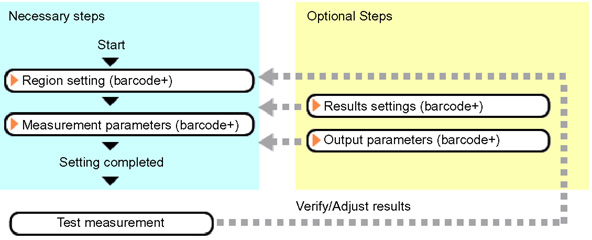

Barcodes+ can be set up as follows.
Barcodes+ - Operation flowOutput parameterRegion settingMeasurement parameterResults settings

List of Barcodes+ Items

Item name
Description
Region setting
This item is used to set up the measurement area.
Restricting the measurement area can shorten the processing time.
Region Setting (Barcodes+)
Measurement parameter
This item specifies the judgement condition for measurement results.Set the code type and the number of characters to be judged as OK.
Measurement Parameters (Barcodes+)
Results settings
Set the measurement results.Judgement results can be classified.
Results Settings (Barcodes+)
Output parameter
This item can be changed if necessary.Normally, the factory default value will be used.
Output Parameters (Barcodes+)
