Settings Flow (EC Circle Search)

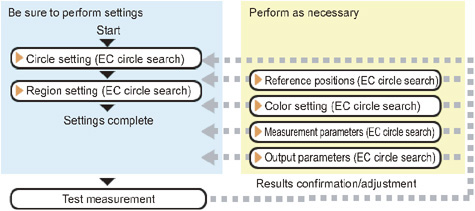

Set up EC circle search according to the following steps.
EC circle search - Operation flowOutput parameterCircle registerRegion settingMeasurement parameterColor settingReference position

List of EC Circle Search Items

EC circle search items are explained below.
Item name
Description
Circle register
This item sets the size of the circle to search for.
Circle Setting (EC Circle Search)
Region setting
This item is used to set up the measurement area.
Narrowing the measurement area instead of measuring the entire input screen shortens the processing time.
Region Setting (EC Circle Search)
Reference position
This item can be changed if necessary.
Usually, the central position of the registered region is specified as the reference position.
Reference Position (EC Circle Search)
Color setting
This item can be changed if necessary.
Select the color of the circle and the background color.If no check is placed at color setting, the circle (edge) is extracted using the brightness difference.
Color Specification (EC Circle Search)
Measurement parameter
This item changes the measurement parameter as necessary when the measurement result is unstable.
Measurement Parameters (EC Circle Search)
Output parameter
This item can be changed if necessary.
Normally, the factory default value will be used.Use the output parameter to specify how to handle the coordinates.
Output Parameters (EC Circle Search)
