Analyzing Logging Data

Acquired data is referred to and processed, and settings are analyzed.

This section uses the example of saving logging data in the USB memory.

Copy logging data saved to the USB memory to the PC.

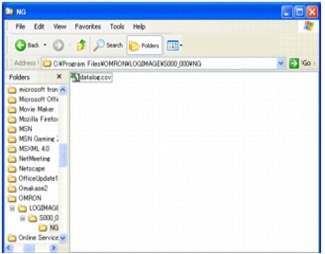

Open folder with copied data.
Open using an application associated with the extension (csv).

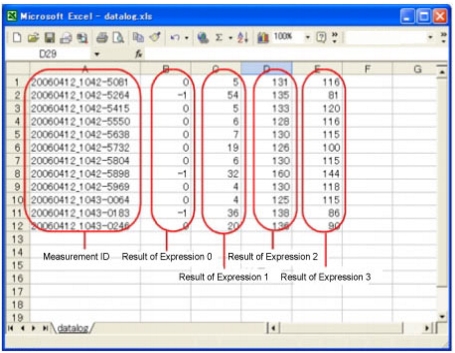

Explanation is given here using examples displayed in Excel.

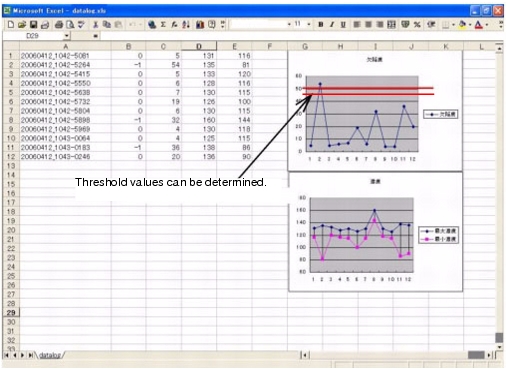

Use Excel graphing and functions to process and analyze data.
For example, the optimum threshold value can be calculated.

Compare image and measurement data to confirm correctness and to make analyzing trends for when NG occurs easier.

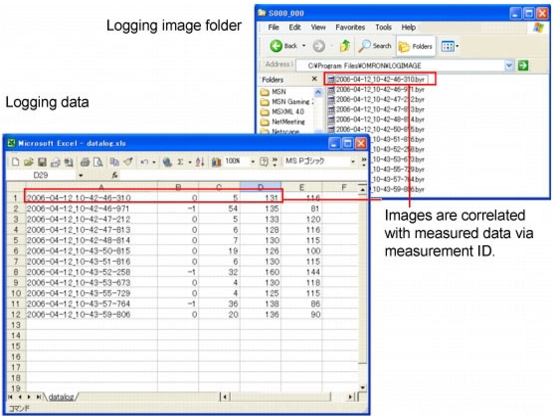

The measurement data and image data stored through the logging function is associated through measurement IDs based on the measurement date and time.

In this way, measurement data can be made to always correspond with image data.

Verify data with the measurement ID.
