What Is a Scene Group?

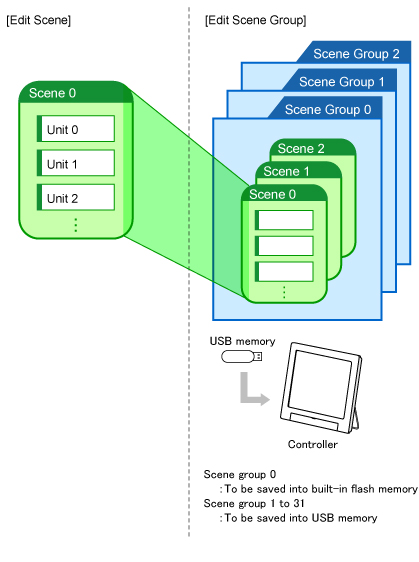

A "scene group" refers to a grouping of 32 individual scenes.Creating a scene group is convenient when increasing the number of scenes and when managing a number of scenes according to category.
USB memory is required for creating a scene group.Scene group 0 is saved in the controller while scene groups 1 to 31 are saved in USB memory.

Note

The maximum number of scenes that can be used is 1024.32 scenes are handled as 1 scene group, and up to 32 scene groups can be set. In other words, 32 scenes x 32 scene groups = 1024 scenes, which is the maximum number that can be used.
There are multiple USB ports on the controller, but it is necessary to assign the drive name "USBDisk" to the USB memory in which the data for the scene group being used is stored.When other USB memory devices are already inserted, perform this operation after removing all USB memory devices other than the one in which the scene group data is stored.
If the USB memory capacity is insufficient for the data size, the number of scenes it is possible to set can be set lower than 1024.The scene data size varies depending on the contents of settings.
The data size that can be set (data memory capacity) can be checked in the system menu.
Checking System Information [System Information]
