 Environment Setting Part > Chapter 9 - Change System Environment > Setting the Conditions for Using Camera [Camera] > Setting for Trigger Delay [Inter-camera setting]

Setting for Trigger Delay [Inter-camera setting]

In the case of many cameras, the delay from receiving STEP signal to input to shutter trigger shall be set.
Note

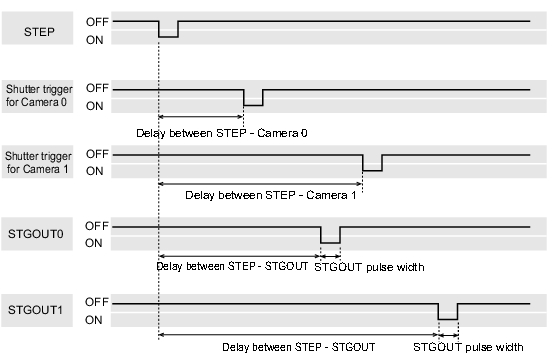

Illustration of setting for trigger delay
  1. On the Main screen, tap [System] - [Camera] - [Inter-camera setting].
    The Inter-camera Setting window is displayed.
  2. Tap [...] of each item and set values.

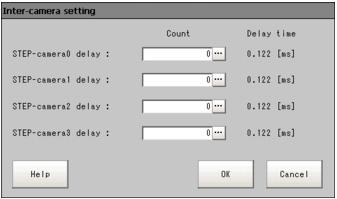

    Inter-camera setting window
    Table: STEP - Camera Delay Setting List
    Item
    Set Value
    [Factory defaults]
    Description
    STEP- camera 0 delay
    [0] to 511
    (1 count/30μs)
    max. 15ms
    Set up the delay from the receiving of the STEP signal to the beginning of the exposure of the camera.
    Delay time
    = counts x 30μs+122μs
    STEP- camera 1 delay
    STEP- camera 2 delay
    STEP- camera 3 delay
  3. Tap [OK].
    The settings are determined and the Inter-camera Setting window closes.
