Edge Pitch

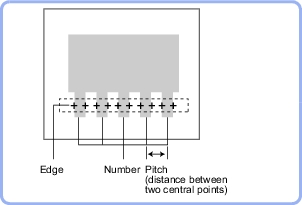

Finds and counts the edges by measuring the color change within the measurement region.

Edge pitch items are explained below.

Table: List of Edge Pitch Items
Item Name	Description
Region setting	This item specifies the measurement region. [Region Setting (Edge Pitch)]
Edge color (for color cameras only)	This item selects the color information of the edges to be detected. [Edge Color - for Color Cameras Only (Edge Pitch)]
Measurement	This item specifies Judgement conditions for measurement results. Measurement values can be changed as needed to address unstable measurement results. Specify the counting spacing and width. The displayed items are different depending on whether your camera is a color or monochrome camera. Normally the factory default value will be used. [Measurement (Edge Pitch)]
Output parameter	This item can be changed if necessary. Normally the factory default value will be used. Use the Output parameter to specify how to treat the coordinate. [Output Parameter (Edge Pitch)]
