Defect

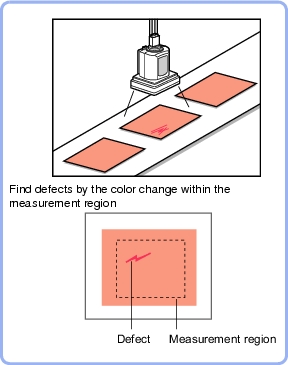

Detect with the color difference within the measurement region.

Used for the following case

  • Check the defect, stain and spot of plain measurement objects
    Defect - Overview
  • Measure appearance defects and defects of parts
    Defect - Overview

List of Defect Items

Defect items are as follows.
Table: List of Defect Items
Item Name
Description
Region setting
This item specifies the measurement region.
Input images can also be entirely measurement. Limiting the measurement region may allow a fast and reliable processing.
[Region setting (Defect)]
Measurement
This item specifies the judgement condition for measurement results. Measurement can be changed as needed to address unstable measurement results or to increase the processing speed. Specify the parameter values with which to decide on defects. The displayed items are different depending on whether your camera is a color or monochrome camera. Normally the factory default value will be used.
Output parameter
This item can be changed if necessary. Normally the factory default value will be used.
Use the Output parameter to specify how to treat the coordinate.
[Output Parameter (Defect)]
