Elapsed Time

Calculate the elapsed time in milliseconds after the measurement starts.

You can add this Processing Item to a scene, without property setup.

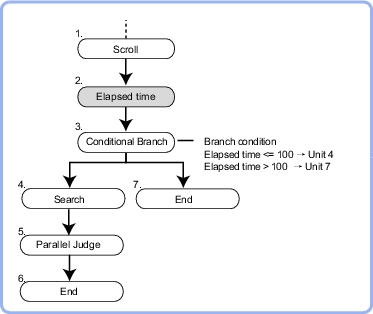

When combining with the Conditional Branch after the specified processing time has elapsed:

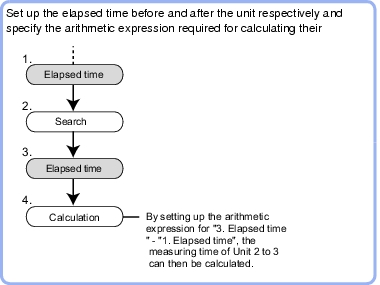

When calculating the processing time of a unit:

Note

The Elapsed time can be verified on the Main screen.
- Main screen (the ADJUST window): Detail results in the "Control" area
  b. the "Measurement Information" area in User's Manual, "Main Screen (ADJUST window)"
- Main screen (the RUN window): Detail results in the "Control" area
  User's Manual, "Displaying Flow and Detail Result"
