Displaying Flow and Detail Result

Toggles on/off of display of [Flow] and [Detail Result] in the "Control" area.

Note

Tap [Flow] or [Detail result] in the "Control" area.

Flow or Detail result is displayed. If tapping it again, the display restores to the original state.

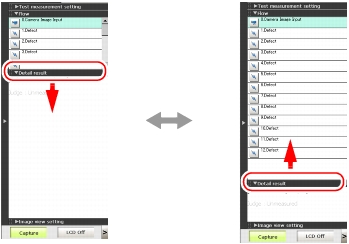

When displaying both flow and detail result, you can change the size of the display area of the flow and the detail result by dragging [Detail result].

Table: Content of display
Item	Description
Flow	The background color of the selected processing unit is blue. The color of icon of the processing unit that has NG after measurement is red.
Detail result	Displays detail result of the processing unit selected in the flow. If tapping the "Detail result" area, the Detail result becomes active. When the Detail result is active, if you tap a flow, you can switch the No. of the processing unit you wish to display only detail result. What are displayed are the measurement results that are defined in each processing item. One item is displayed on one line. The contents are as follows. Line 1 Name of the Unit Format: <X. name of Unit> (X: code number of Unit) Line 2 Judgement for each processing unit Format: judge: judgement result (judgement result: OK/NG) Starting from Line 3 The measurement results of each Processing Item When the judgement result is OK, black text will be viewed; when NG, red text will be viewed.
