Analyzing Data

Verifying Logging Data

  1. Measure and logging the measured data.
    Setting up Logging Condition [Logging setting]
  2. Copy the data saved in USB memory into PC.
  3. Open folder with copied data.

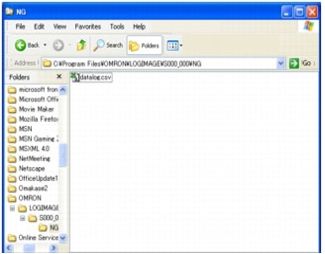

    Explore screen
  4. Open and logged data using extension name-related applications.
    Here, examples of CSV files shown in Excel are described.

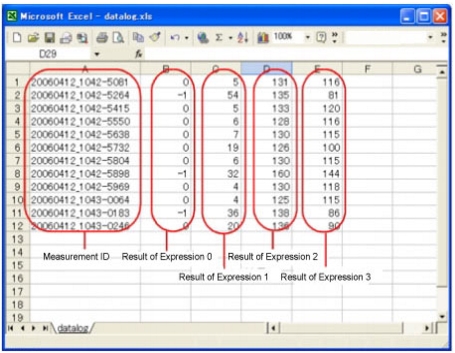

    Excel screen displaying a csv file

Analyzing Logging Data

Analyze data and calculate optimum critical value using Excel functions.
  1. View data according to the steps of "Verify Logging Data".
  2. Analyze data and calculate optimum critical value using Excel functions.

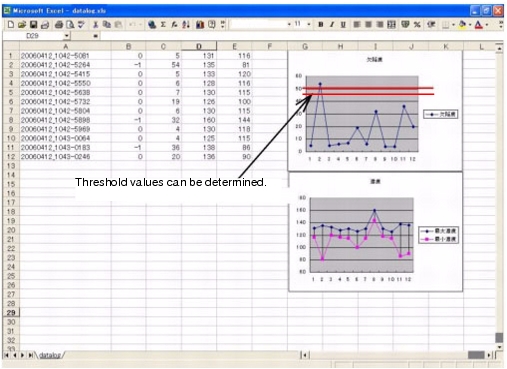

    Illustration of how to use Excel

Comparing Logging Data and Images

Analyze the trend of NG by comparing and verifying images and measured data.
The measured data saved by logging functions are correlated image data via time-dependent measurement ID.
In such way, measured data always correspond to image data.
Compare data according to measurement ID.

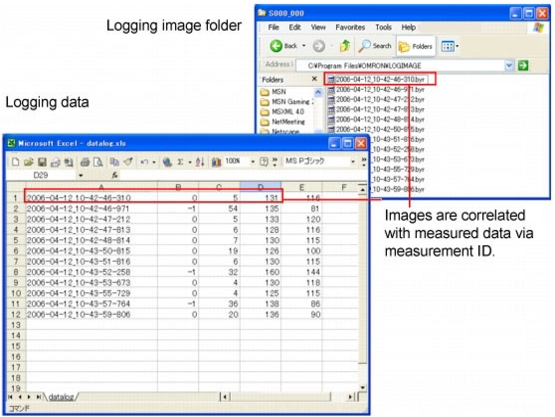

Illustration of comparing the measurement ID
