Re-measuring Saved Images (Re-measurement)

After a test measurement or a measurement, saved images can be re-measured.
The following images can be re-measured.
  • The measured images saved in the controller
  • The images saved in the USB memory
Measuring the testing of NG images can confirm if the correction is correct.
Like testing measurement, re-measurement is performed using the condition setting in scene.
How To Connect & Communicate With External Devices
Important
  • When performing re-measurement, set the image mode to "Freeze".
    Image Display Setting
  • Only the image files which are named with one-byte alphanumeric characters can become the object of re-measure.

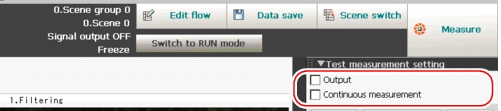

  1. In the "Control" area of the Main screen, tap [Test measurement setting].
  2. Specify each of the following items.
    Main screen
    Table: Test measurement
    Setting Item
    Description
    Output
    Specifies whether or not to output the measurement results to an external device during the measurement.
    Checked
    Outputs the measurement results to an external device during the measurement.
    Unchecked
    Does not output the measurement results to an external device during the measurement.
    Continuous measurement
    Specifies whether or not to perform continuous measurements.
    Checked
    Performs continuous measurements during the measurement.
    Unchecked
    Does not perform continuous measurements during the measurement.
    Note
    • When measurement is performed in the RUN window, measurement results are output to an external device regardless of the "Output" setting.
  3. Specify and display the image file to be re-measured.
    For how to specify an image file, see Displaying Saved Images.

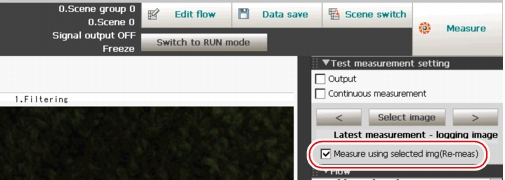

  4. Check "Measure using selected img (Re-meas.)".
    Main screen
  5. Tap [Measure] in the Toolbar on the Main screen.
    Main screen
    The measurement on the selected image is performed.
    Note
    • An alternative operation: tap [Measure] - [Measure].
    • In continuous measurements, the [Measure] button changes to the [Stop meas.] button during the measurement. To stop the continuous measurements, tap [Stop meas.].
  6. To re-measure another image continuously, either tap [Select image] again, or tap one of [<] and [>] on each side to display the file name of another image.
    Displaying Saved Images
  7. Tap [Measure] in the Toolbar on the Main screen.
    Main screen
    The measurement on the selected image is performed.
